Packaging

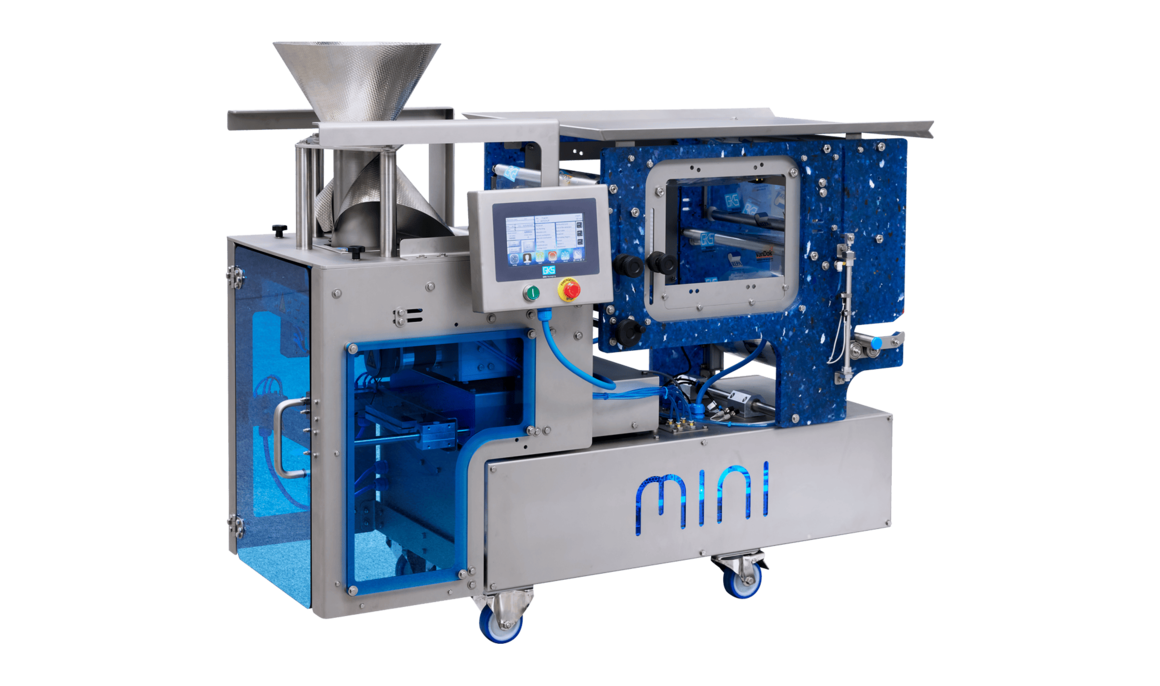

MINI packaging machine

Specializes in small bag widths up to 160 mm: the MINI is ideal for the portioned packaging of food products such as nuts, croutons or liquids such as sauces. It also produces small packages for vegetables, salad and fruit.

up to 65 bags/minuteMax. capacity
Tubular bag packaging machine for packing food products and liquids in small packaging sizes.

Arguments for use

  • Optimized for small bag widths from 40 mm to 160 mm
  • Ideal for portioned packaging, even for sauces
  • High operating speed

Product groups


Portrait

Small package sizes for the portioned packaging of food products

With an adjustable bag width from 40 to 160 mm and unlimited bag length, the MINI can be used to produce packaging for a wide range of products. Food products, for example (cut) vegetables, fruits, lettuce or nuts, as well as sauces and dressings and even non-food products, are efficiently packaged in portions. Manual filling of the packaging machine is also possible. In the standard configuration, the MINI produces pillow bags; optionally, self-standing bags can also be produced.

The mobile packaging machine from KRONEN's partner GKS Packaging B.V. is suitable for both high-care and low-care production areas. Thanks to its small footprint and low height, it can be combined with many dosing systems and used flexibly in smaller production areas and industrial environments.

The modular and compact yet open construction makes cleaning and maintenance easier. Some components of the machine are made from recycled ocean plastic.

Show more Show less

Benefits

KRONEN benefits

Extremely user-friendly and easy to clean

The packaging machine is easy to operate without prior knowledge due to its excellent accessibility and clear operation using of the 7-inch full-color touch screen. Thanks to the open construction and hygienic design, the machine can be cleaned quickly and easily.

KRONEN benefits

Compact, robust design with a low space requirement

Due to its compact design, the packaging machine requires little space. This enables it to be flexibly integrated into different production areas.

KRONEN benefits

Easy, rapid film change

The open construction of the packaging machine ensures that the roll of packaging film can be replaced quickly and easily. This avoids a longer interruption during the production process.

KRONEN benefits

Mobile and flexible

The packaging machine is equipped with casters so that it can be flexibly used in different locations in production within a very short space of time. The casters also make it easy to move it to another location for cleaning if needed.

KRONEN benefits

Flexible integration into the production process

The feeding hopper of the packaging machine was designed to make the machine suitable for both manual filling (ergonomic filling height) and automatic filling. The machine can therefore be used flexibly as a stand-alone machine or integrated into a weighing system.

KRONEN benefits

Allen Bradley PLC and electrical components

The 99 program memory locations enable a wide of recipes to be easily stored, ensuring consistent packaging results. The high-quality electrical components guarantee the smooth operation of the packaging process.

KRONEN benefits

Servo-driven film transport for precise bag length

The film used to produce the bags is unwound from the roll in a servo-driven procedure, which provides a high level of precision in the set bag length.

KRONEN benefits

Low power and air consumption

The packaging machine has a low consumption of electricity and compressed air, thus contributing to a cost-efficient packaging process.

KRONEN benefits

Modular design for fast maintenance

The modular design allows individual components to be replaced quickly, which avoids long downtimes and high costs for maintenance work. Accessories can therefore also be replaced or retrofitted particularly easily and quickly.


Accessories

KRONEN accessories
Light barrier for detecting the bag length with pre-printed films

When using pre-printed films, an exact bag length is particularly important so that all bags produced have a uniform appearance. The light barrier ensures that the film is cut off at the intended point.

KRONEN accessories
Connection for gas flushing (MAP)

To extend the shelf life of fresh (cut) products such as salad products, vegetables or fruit, a gas mixture can be added to the package before sealing the bag. Gas flushing (modified atmosphere packing) reduces the oxygen content in the packaging and can therefore extend the shelf life.

KRONEN accessories
Printing and labeling systems

With the help of printing and labeling systems, the bags can be labeled with all important details and information directly during packaging.

KRONEN accessories
Various weighing and dosing systems

The packaging machine can be equipped with various systems for weighing and dosing. The systems are adapted to the specific requirements and nature of the products. Different weighing systems, dosing systems or pump dosing systems are used depending on the application.

KRONEN accessories
Processing of all conventional film types

The sealing system enables the processing of all conventional film types. PE films and other types of film can be processed in addition to PP and laminate films due to the exchangeable seal jaws.

KRONEN accessories
Vibration unit for the even distribution of the product in the packaging

By using a vibration unit, the product is distributed more evenly in the bag.

KRONEN accessories
Discharge belt

The belt ensures that the bags are transported safely out of the packaging machine after the sealing process without touching the floor.

KRONEN accessories
Rotary table for efficient bag packaging

The rotary table ensures an efficient workflow when packing the bags into crates or boxes for further transport.

KRONEN accessories
Thermal transfer printer for direct printing on the packaging film

With this printer, the most important information can be printed directly on the film so that the labeling and production of the bags can be carried out in one operation.

up to 65 bags/minute
Capacity
Max. width 160 mm
Bag size

The capacity depends on the product, among other things.

Electrical power Power 1.2 kW
Voltage 230 V
Frequency 50 Hz
Air Working pressure 6 bar
Air consumption 156 NL/min.
Dimensions LxWxH 1330 x 650 x 1140 mm
Film and bag specifications Film width max. 160 mm
Film thickness 25 - 120 μ
Film roll inner diameter 76 mm (3”)
Film roll outer diameter 320 mm
Bag width max. 160 mm
Bag length unlimited
Bag length per sealing process max. 170 mm
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.

Machine illustrations can include special accessories.
