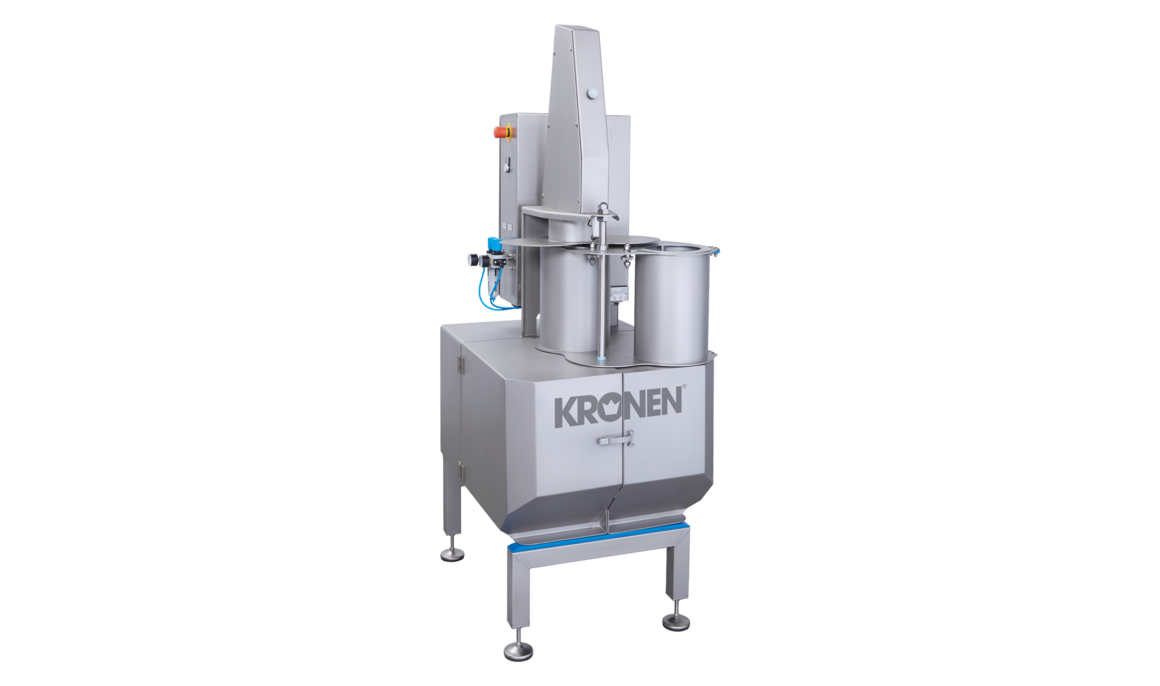

SPIRELLO 150 vegetable spiral cutting machine

The classic model for modern and fresh cuisine: automatic cutting of decorative vegetable spirals or strips of supreme quality – for vegan spaghetti or in fresh salads

340 kg/hMax. capacity
Vegetable spiral cutting machine SPIRELLO 150 from KRONEN for cutting decorative vegetable spirals or strips in top quality – vegan spaghetti made of carrots, potatoes, pumpkin, radish, zucchini , celery, palm hearts or other firm kinds of vegetable and fruit

Arguments for use

  • Perfect and consistent cutting quality at high processing speeds
  • High yield with minimal waste thanks to intelligent cutting technology
  • Large selection of cutting tools for different product sizes
  • Low personnel requirement: only 1 person is necessary to operate the machine
  • Easy operation and cleaning due to good accessibility

Product groups


Portrait

Exemplary in precision and performance: cuts large quantities of colorful vegetable spirals

The SPIRELLO 150 is a cutting machine for processing large quantities of vegetables into perfect and decorative spirals or strips.
A colorful variety of products such as carrots, potatoes, pumpkin, radishes, zucchini/courgettes, celery or other firm vegetables and fruits can be cut cleanly and in a matter of seconds. The SPIRELLO 150 impresses users with its high precision, durability and efficiency.

With up to 680 revolutions per minute, the SPIRELLO 150 cuts vegetables into meter-long spirals within seconds. These spirals can then optionally can be shortened using a length limit knife via interval switching with seven levels.

The machine is equipped with removable magazines, one of which can be fitted with the raw product while the vegetable in the second magazine is processed. This means that the SPIRELLO 150 can be operated without interruption. An optimal cutting result is achieved via a variable speed control with seven levels depending on the nature of the product.

The machine has an automatic separation system for good product and waste product. The SPIRELLO 150 impresses users with a extremely minimal amount of waste because the vegetable product is completely cut into spirals – except for a very small piece from the top.

An optional discharge belt is available for fast and effective discharge.

Show more Show less

Videos

Spirello 150 - vegetable spiral cutting
SPIRELLO150 – for cutting decorative vegetable spirals

Benefits

Efficient processing of vegetable products with minimum waste thanks to the innovative vegetable spiral cutting machine SPIRELLO 150 from KRONEN.

High productivity – minimal waste

Good product and waste product are automatically separated. The SPIRELLO 150 impresses users with an extremely minimal amount of waste because the vegetable product is completely cut into spirals – except for a small piece from the top. The integrated PLC control also allows flexible conversion of the machine to suit the product or product size being processed.

Large variety of spirals with outstanding cutting results with the vegetable spiral cutting machine SPIRELLO 150 from KRONEN.

Excellent cutting results – in every format

The SPIRELLO 150 cuts large quantities of vegetables into meter-long, decorative spirals quickly and cleanly. These spirals can optionally be shortened using a length limit knife via interval switching (seven levels). An optimal cutting result is always achieved. The vegetables are held in place by product centering devices, which are adapted to the product according to the customer's wishes (processing of vegetables with a diameter of up to 150 mm, length of up to 300 mm, and weight of max. 2.5 kg).

The vegetable spiral cutting machine SPIRELLO 150 from KRONEN is easy to operate.

Simple operation and outstanding performance

The SPIRELLO 150 can be operated by just one person and without interruption – at up to 680 revolutions per minute.
Equipped with two interchangeable magazines, the SPIRELLO 150 can be filled with raw product without having to interrupt the processing of the vegetables. Knives can be changed quickly and effortlessly to suit different products or product characteristics.

The vegetable spiral cutting machine SPIRELLO 150 from KRONEN has an ideal design for safe, fast operation and maintenance as well as optimum hygiene.  v

Optimal maintenance and cleaning

The robust stainless steel construction makes the SPIRELLO 150 ideal for long, low-maintenance use. The fully accessible interior and smooth surfaces allow quick and easy cleaning and maximum hygiene.


Accessories

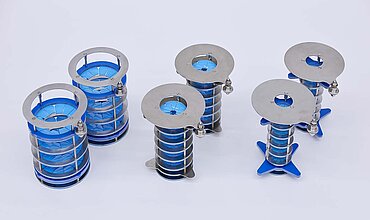

There is a range of different product holders for smaller to larger products available for the vegetable spiral cutting machine SPIRELLO 150 from KRONEN.
Versatile product holders for product-adapted spiral cuts

The SPIRELLO 150 is suitable for a wide range of products and spiral cutting shapes. Various centering units are available:  30–60 mm (e.g. for thinner zucchini/courgettes, carrots), 50–90 mm (e.g. for radishes, zucchini/courgettes, carrots in medium sizes) and 90–150 mm (e.g. for butternut squash, kohlrabi, celeriac).

Vegetable spiral cutting machine SPIRELLO 150 from KRONEN – the meter-long spirals of different thicknesses are produced using a large selection of knife inserts.
Large selection of knife inserts

With a variety of knife inserts, the SPIRELLO 150 can produce different spiral thicknesses: 2 x 2 mm,  2 x 3 mm, 2 x 4 mm,  2 x 10 mm,  3 x 3 mm or  4 x 5 mm.


KRONEN accessories
Shorten long vegetable spirals flexibly and as needed

The SPIRELLO 150 cuts large quantities of vegetables into meter-long spirals or strips. These can be shortened with a length limit knife via interval switching (seven levels).

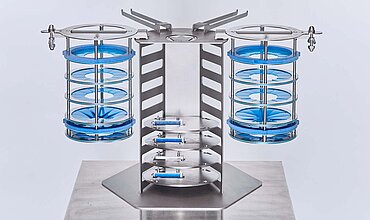

Vegetable spiral cutting machine SPIRELLO 150 from KRONEN – all the knife inserts and product holders (centering units) are stored safely and on hand at all times on the tool stand.
Stand for practical accessory storage

Knife inserts and product holders are stored clearly, safely and within easy reach in this stand.

50-340 kg/h
Capacity
Semi automatic

The capacity depends on the product, among other things.

Electrical power Power 0.9 kW
Voltage 230 V N/PE
Frequency 50 Hz
Dimensions LxWxH 600 x 845 x 1700 mm
Weight 180 kg
Air Working pressure 6 bar
Miscellaneous Length of raw product max. 300 mm
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
