Peeling

AMS 220 pineapple and melon peeling machine

Perfect, contour-independent peeling of pineapple, melons of all kinds and squashes and pumpkins with a smooth surface with exceptional peeling quality

up to 4 fruits/min.Max. capacity
Pineapple and melon peeling machine AMS 220 from KRONEN for the efficient peeling of pineapples as well as melons, pumpkins, papayas and bread fruit – the peeling system is independent of the contour and guarantees a perfect peeling result with optimum product yield

Your benefits

  • Exceptional peeling quality due to a specially developed contour guiding system (contour-independent)
  • The adjustable peeling thickness from 1.5 to 13 mm enables optimal peeling results
  • The intelligent peeling system guarantees an optimal product yield compared to manual peeling
  • All required tools and accessories hang within easy reach on a tool bar integrated directly on the machine
  • Flexible and versatile peeling options even for small watermelons, several types of papaya and breadfruit

Product groups


Portrait

Contour-independent peeling of pineapple, melons, squashes and pumpkins with excellent peeling quality

The AMS 220 pineapple and melon peeling machine specializes in peeling fruits of various shapes and sizes. It offers exceptional peeling quality due to a specially developed contour guiding system, meaning that pineapples, melons, squashes, pumpkins and other fruits are peeled regardless of their contour, resulting in an optimal product yield.

The fruits are placed in the machine manually and then clamped by an electrical selection key, regardless of the shape of the product.  Due to various setting options, the peeling processes can be time-optimized, meaning that the peeling time can be reduced to as short as six seconds per fruit.

A clearly arranged control panel enables uncomplicated, easy handling. The AMS 220 works entirely without compressed air; this advantage and the mobile base frame that comes as standard enable flexible use of the machine anywhere and at any time. The easy accessibility and smooth surface design guarantee fast and effective cleaning.

Capacity depending on product: up to 4 fruits/min.
Product size: diameter min. 100 mm/max. 220 mm
Product weight: max. 4 kg

Show more Show less

Videos

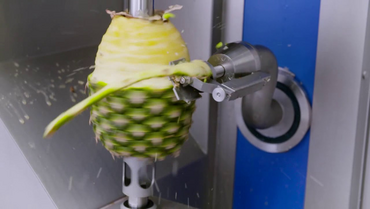

AMS220 - Peeling melons and pineapple regardless of product contours!
Many kind of fruit such as e.g. pineapples, melons of all kind, pumpkins with a smooth surface (e.g. butternut) can be peeled regardless of the products contours. The AMS 220 scores with this significant flexibility benefit!
AMS 220 – peel melons and pineapples independently of their contour!
The AMS 220 peels pineapples, melons and even butternut squash cleanly and fully automatically.

Benefits

Clean, groove-free peeling of pumpkins with the pineapple and melon peeling machine AMS 220 from KRONEN thanks to the innovative, contour-guided knife peeling system

An outstanding peeling result with an optimal product yield

Various peeling thicknesses from 1.5 to 13 mm can be set with a simple change – without tools and within seconds – thanks to the specially developed contour guiding system. This contour guiding technology ensures an extremely smooth, flawless peeling result in accordance with the shape or contour of each individual fruit. Due to the flexible peeling thickness setting, it is also possible to produce zest from grapefruits or pomelos, for example.

Pineapple and melon peeling machine AMS 220 from KRONEN: highly efficient peeling system combined with a coring function especially for pineapples

Practical coring function for pineapple

When pineapples are peeled, the stalk can be removed cleanly and quickly by means of a simultaneous coring function, which can be activated and deactivated by means of a switch.

Pineapple and melon peeling machine AMS 220 from KRONEN: the sturdy design with smooth surfaces makes for fast and simple cleaning and therefore  perfect hygiene.

Optimal maintenance and cleaning with mobile application options

The robust stainless steel construction makes the AMS 220 ideal for long, maintenance-free use. The fully accessible interior and smooth surfaces enable fast and easy cleaning and maximum hygiene. The compact design of the AMS 220 and the fact that is comes with a mobile base frame as standard also enable flexible use anywhere and at any time.


Pineapple and melon peeling machine AMS 220 from KRONEN: the practical tool holder directly on the machine enables quick access to accessories and tool parts

Practical accessory and tool holder

All required tools and accessories hang within easy reach on a tool bar integrated directly on the machine

up to 4 fruits/min.
Capacity
Knife-peeling

The capacity depends on factors such as the product.

Electrical power Power 0.7 kW
Voltage 230 V
Frequency 50 Hz
Infeed/placement height 950 mm
Outfeed/delivery height 950 mm
Dimensions LxWxH 842 x 838 x 1930 mm
Weight 187 kg
Miscellaneous Product size diameter min. 100 – max. 220 mm
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.

Machine illustrations can include special accessories.
