Peeling, Washing

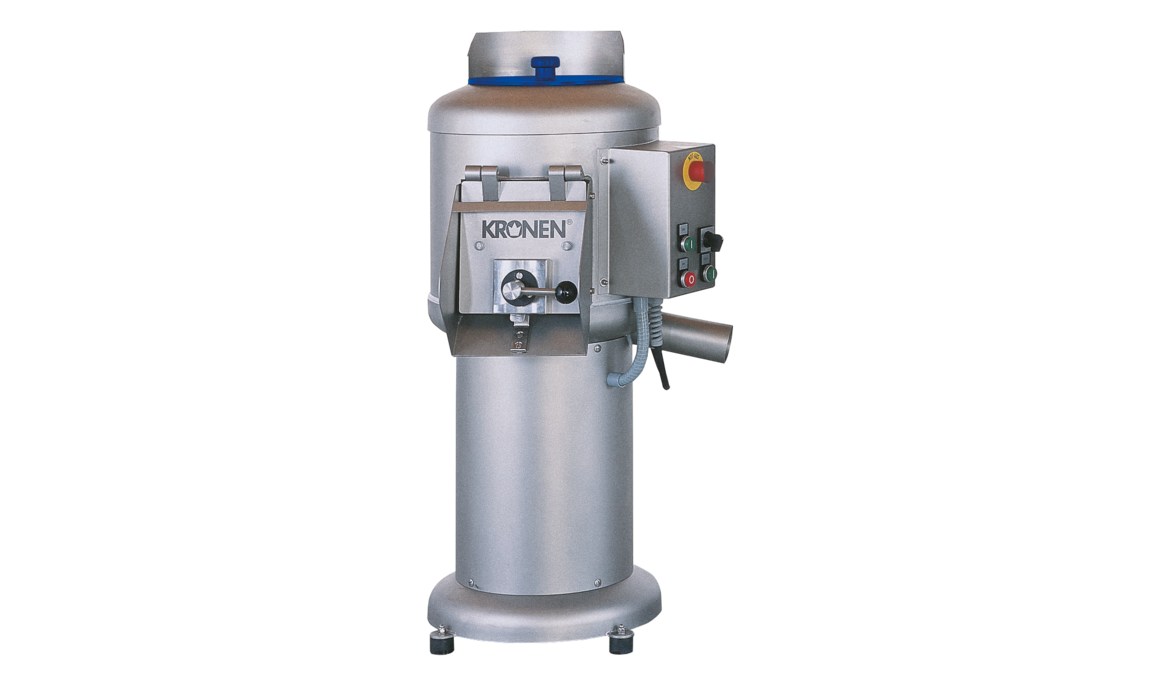

PL 25K potato peeling machine

Robust and proven technology for the gentle and systematic peeling and washing of potatoes, carrots, beetroot, cabbage turnips (kohlrabi) and other tuber vegetables

400 kg/h   Max. capacity
The sturdy potato peeling machine PL 25K from KRONEN is ideally suitable for cost-saving use in smaller and medium-sized processing companies
PDF Preview Add to request

Your benefits

  • Cost-effective due to low purchase and operating costs

  • The robust and stable design made of stainless steel ensures long-term and reliable use

  • Easy cleaning and operation

  • Versatile use for several types of tuber vegetables

  • Easy changeover from a peeling to a washing system

Product groups

Portrait

Clean and gentle peeling and washing of tuber vegetables

The PL 25K is the affordable and proven entry-level model for peeling and washing potatoes, carrots, beetroot, cabbage turnips (kohlrabi) and other root vegetables in small and medium-sized enterprises.

The standard equipment with an abrasive system enables paper-thin, gentle removal of the peel. The entire cycle of filling, peeling and emptying takes approximately 2–3 minutes.

The PL 25K offers the possibility of switching from the peeling function to a pure washing function in a few simple steps.  By replacing the carborundum peeling insert with a rubber-coated insert, the peeling machine can be transformed into a practical washing machine for tuber vegetables within three minutes.

The filling and peeling process can be controlled centrally by means of an automatic control system (optional). The PL 25K can therefore be ideally integrated into complete processing lines for the washing, peeling and cutting/dicing of root vegetables.

Show more Show less

Benefits

Potato peeling machines PL 25K and PL 40K from KRONEN – gentle precleaning and peeling through gentle water spraying.

Washing and peeling in one step

A gentle water spray from above washes the products during peeling and rinses off the carborundum layer.

Show more Show less
The abrasive peeling of the potato peeling machines PL 25K and PL 40K from KRONEN achieves a clean product result.

Gentle abrasive peeling and only low pressure on the product

The large inner diameter ensures gentle peeling and low pressure on the product.
In accordance with the different product requirements, the carborundum systems are available in several grain sizes from coarse to very fine.

Show more Show less
Potato peeling machines PL 25K and PL 40K from KRONEN – simple cleaning thanks to smooth and rounded surfaces.

Optimal hygiene thanks to quick peeling basket replacement

The peeling basket and peeling disk can removed and installed in less than three minutes. In combination with the rounded base and smooth surfaces of the peeling machine, this allows effective and fast cleaning
The robust stainless steel construction and reliable mechanism make the PL 25K ideal for long periods of maintenance-free use.

Show more Show less
The potato peeling machines PL 25K and PL 40K from KRONEN can be converted quickly and easily into a potato washing machine.

Conversion from a peeling machine to a tuber vegetable washing machine

The carborundum peeling system (basket and disc) can be quickly and easily replaced with a rubber stud insert. This allows the peeling machine to be converted into the perfect washing machine for tuber vegetables in less than three minutes.

Show more Show less
The potato peeling machines PL 25K and PL 40K from KRONEN is equipped with an automatic time switch.

Automatic timer

The automatic timer is used to program the peeling time, which is infinitely adjustable from 1–10 minutes.


Show more Show less

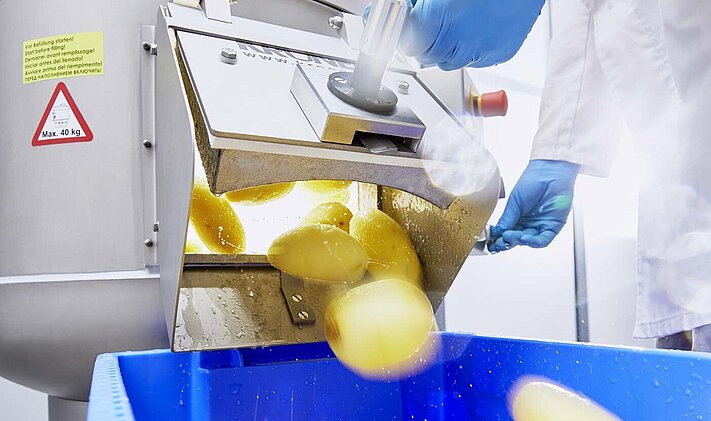

High automation potential thanks to the filling and emptying system of the potato peeling machines PL 25K and PL 40K from KRONEN

Automatic control for the optimal filling and emptying process

The filling and emptying control offers high automation potential. This automatic function serves to control the peeling and washing time, product feed and product discharge.
The PL 25K potato peeling machine can be optimally integrated into complete processing lines

Show more Show less

Accessories

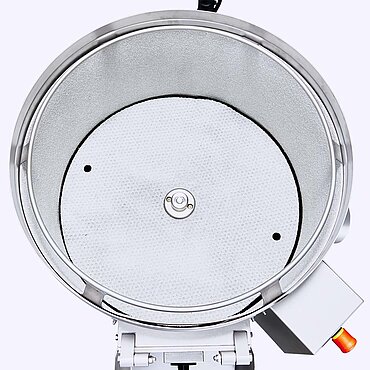

The potato peeling machines PL 25K and PL 40K from KRONEN can be converted quickly and easily into a potato washing machine.
Rubber stud system for washing tuber vegetables

A rubber stud system (basket and disc) is available for converting the peeling system into a washing system.  This enables the PL 25K potato peeling machine to be turned into a perfect washing machine for tuber vegetables in less than three minutes.

Show more Show less

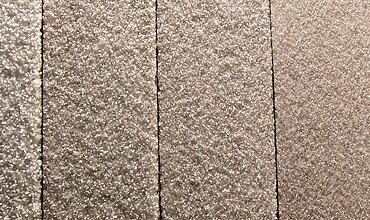

The abrasive peeling system for the potato peeling machines PL 25K and PL 40K from KRONEN is available with different grain sizes.
Gentle abrasive peeling system in various grain sizes

The several grain sizes allow different customer and product requirements to be met, for example:
- EK24 for potatoes and tuber vegetables
- Fine and coarse coatings according to the customer's product requirements


Show more Show less

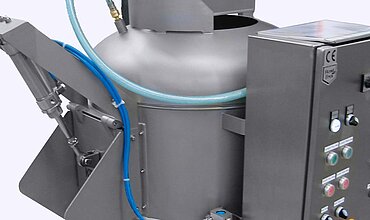

Thanks to the pneumatic door lock, the potato peeling machines PL 25K and PL 40K from KRONEN can be integrated perfectly into an automatic process line.
Pneumatic door closing function

The pneumatic door closing function allows the trouble-free integration of the potato peeling machine into an automatic processing system.
After emptying the peeled products, the door is automatically closed for the next peeling process.

Show more Show less
Peel collector

A practical container for peel residue

Show more Show less
250 - 400 kg/h
Capacity
Abrasive peeling

The capacity depends on factors such as the product.

Electrical power Power 1.12 kW
Voltage 3~400 V N/PE
Infeed/placement height 1177 mm
Outfeed/delivery height 640 mm
Water Fresh water connection GEKA
Water drainage 3/8"
Dimensions LxWxH 766 x 705 x 1262 mm
Weight 100 kg
Miscellaneous kg per batch 25 kg
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
PDF Preview
pdf
Download

This might also interest you

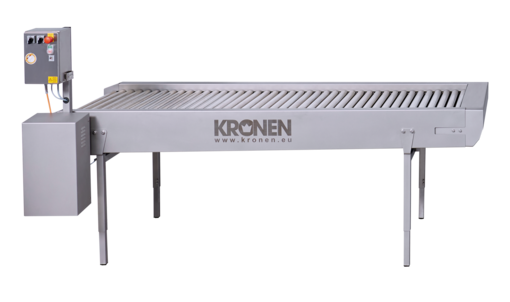

The roller sorting table makes efficient visual product inspection possible for raw goods or checks on the peeling and cutting quality of whole products.
