Disinfection, Washing

DS1000 mobile batch blower washing machine

The affordable entry-level model or an additional machine for bubble cleaning, washing, dipping and hygienic treatment of lettuce, fruit and vegetables in smaller quantities

Batch-type blower washing machine DS 1000 mobil from KRONEN for the washing, dipping and hygienic treatment of salad, vegetables and fruit in small quantities
PDF Preview Add to request

Your benefits

  • Gentle bubble washing and treatment due to an air blower
  • Mobile and therefore flexible for use in different locations
  • Washing intensity and washing time infinitely adjustable
  • Cost-effective due to favorable purchasing and operating costs
  • Simple operation and cleaning

Product groups

Portrait

Washing, dipping and disinfection of lettuce, fruit and vegetables

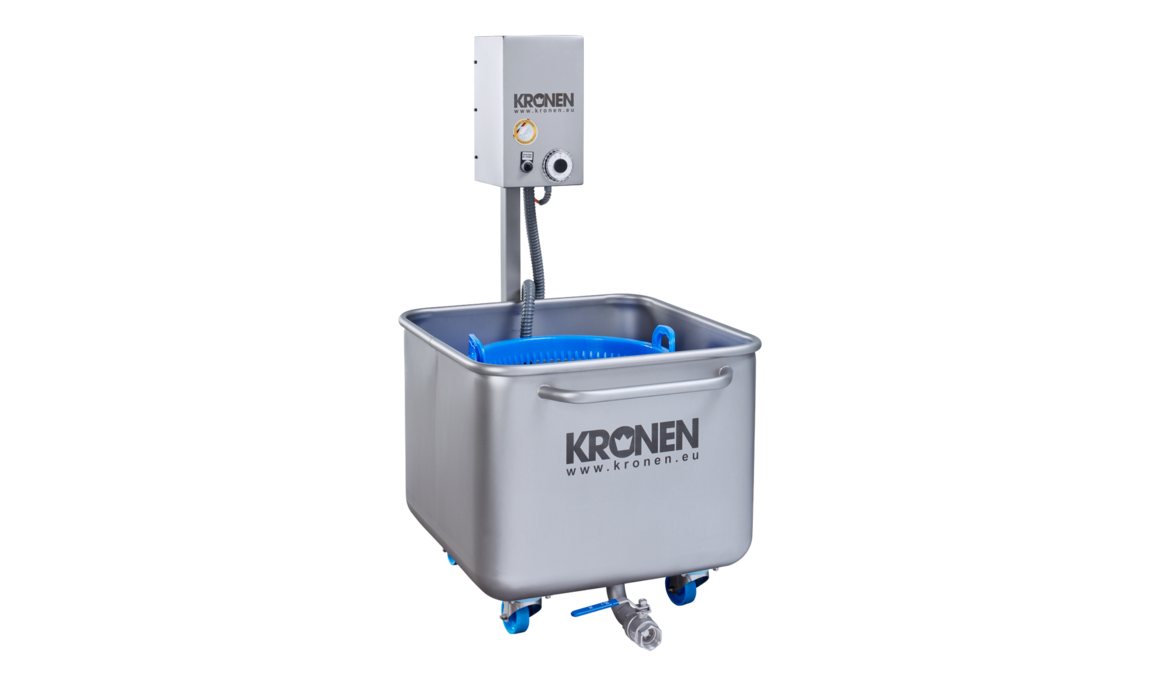

The DS1000 mobile is a compact bubble unit and is used as an entry-level or additional machine. It is equipped as standard with an infinitely variable blower unit and timer control, four wheels with a parking brake and a basket holder for a standard spin basket.

Flexible application options:

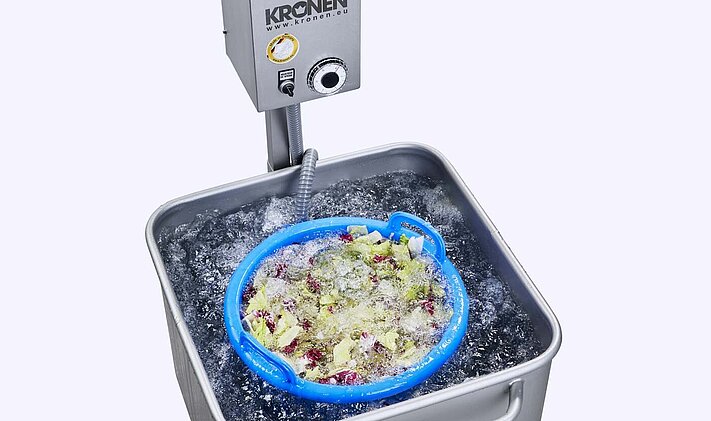

  • Cut lettuce as well as vegetables, fruit and herbs (whole or cut) are moved by the bubbling effect of the air blower and gently washed to a hygienically clean condition.
  • Cut products, for example celery, potatoes or apples, can be dipped and simultaneously treated to prevent discoloration and extend shelf life.
  • With the help of washing additives, whole vegetables and fruits are dipped and disinfected before processing to avoid possible cross-contamination.

The DS1000 mobile is available as a special version for washing products in crates (Euronorm 600 x 400 x 200 mm). The GEWA washing machines are suitable for washing higher capacities of lettuce, fruit and vegetables.

Show more Show less

Benefits

The batch-type blower washing machine DS 1000 mobil from KRONEN for salad, vegetables and fruit is easy to operate, clean and maintain

Easy operation, cleaning and maintenance

The air intensity and the bubble time are adjusted via control dials. The open wash basin is quickly emptied. The basket holder and the bubble unit can be removed without using tools. No major maintenance work is required. The switch cabinet is sealed and therefore waterproof.


Show more Show less
KRONEN benefits

Draining table

When the basket is removed from the blower washing machine, it can be placed on the table to drain. The water is therefore returned to the DS1000 mobil. This saves resources, especially when washing additives are used.

Show more Show less

Accessories

Cover for washing apples

In the DS 1000 mobil, apples are usually washed directly in the crate. The special cover stops the apples from floating out of the crate.

Show more Show less
Easily stackable plastic baskets which are placed into the spin-dryer
Matching plastic baskets

The lightweight, stackable plastic baskets with carrying handles are filled with the wet (washed) product and inserted into the rotating basket of the spin-dryer.

Show more Show less
Wet disinfection

The capacity depends on factors such as the product.

Electrical power Power 0.37 kW
Voltage 230 V N/PE
Frequency 50 Hz
Water Total volumes 230 l
Dimensions LxWxH 850 (670) x 670 x 1270 mm
Weight 100 kg
Infeed/placement height 614 mm
Outfeed/delivery height 614 mm
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
PDF Preview
pdf
Download

This might also interest you

Cost-effective, efficient and gentle washing with the washing machine GEWA 2600 ECO from KRONEN: cut and whole products (salad, vegetables, herbs, fruit etc.) up to 600 kg/h.
Disinfection, Washing, Mixing

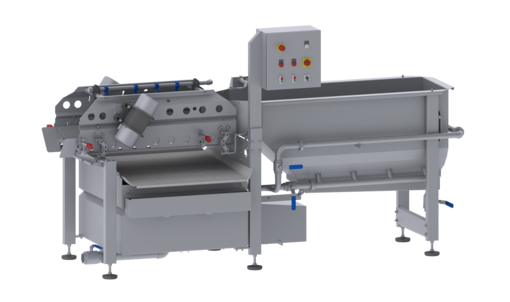

GEWA 2600 ECO washing machine with vibration or belt outfeed
