AS 4 apple peeling and slicing machine

A handy tabletop device for semi-automatic apple processing: proven for decades and perfect for peeling, coring, wedging and slicing apples

up to 600 apples/hMax. capacity
Apple peeling and cutting machine AS 4 from KRONEN for peeling, coring and dividing apples

Arguments for use

  • Three applications: peeling, coring and slicing in one machine
  • High capacity – furthermore, several machines can be placed next to each other
  • Wide range of cutting tools
  • Optional automatic separation of good product and waste


Product groups


Portrait

Semi-automatically peel, core and flexibly cut apples into segments and slices

The AS 4 peeling, slicing and coring machine for apples is a very compact, easy-to-use multifunctional tabletop device used in the high-care area of fruit processing. It is loaded manually, and up to three apples can be processed at the same time, meaning that up to 600 apples, equivalent to approximately 90 kg (at 150 g/apple), can be processed per hour.

Processing in four steps:

  1. The apples are placed on the three product spikes by hand.
  2. The apples are peeled and sliced if necessary.
  3. The core is removed and segments are cut in the same step if required.
  4. The separating cylinder separates the finished product from the peel. With an optional separation system, the good product and waste (core and peel) are discharged into separate hoods.

Common uses:

  • Peeled tidbits, i.e. slices and segments, for example for bakery products or fruit salad
  • Fresh apple segments for fresh-cut snacks, peeled or unpeeled
  • Slices or rings for dried apple slices and rings, peeled or unpeeled

The machine processes whole apples with a diameter of 55 to 85 mm and a maximum height of 80 mm. As standard, the AS 4 comes with a cutting tube with a diameter of 20 mm with a scraper, a cutter head with a peeling knife, and a separating cylinder. In addition, a wide range of wedging knives, slicing knives, and cutting tubes are optionally available.

If apples are additionally to be cut into cubes, then the KUJ-V cube, strip and slice cutting machine is a good option.

Show more Show less

Videos

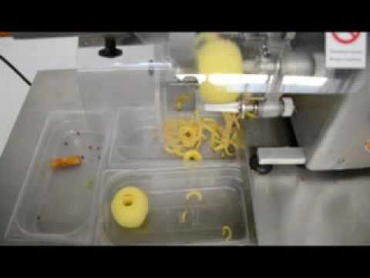

AS4: Apple peeling, coring, cutting
With this handy table top model AS4 you can process apples in a very easy way: In one step you can peel, core, divide and/or slice your apples in bize-sized pieces. It is perfectly suited for fruit salad or pie topping! More information: http://www.kronen.eu.
AS 4: peel, core, cut apples
Using this handy table-top model AS 4 you can peel apples, remove the core, segment them (into bite-sized pieces) and/or cut slices of different thickness all in one work process. Just perfect for cake toppings or fruit salads! More information at: http://www.kronen.eu.

Accessories

The slicing knives for peeling & cutting machines AS 4 and AS 6 from KRONEN allow clean slices to be cut 3.5 mm 4.5 mm, 5.5 mm, 7.5 mm, 10 mm, 14 mm, 20 mm, 30 mm thick
Slicing knives for cutting slices

The slicing knives ensure clean slicing cuts. The cutting tools can be changed quickly and easily. The following sizes are available: 3.5 mm, 4.5 mm, 5.5 mm, 7.5 mm, 10 mm, 14 mm, 20 mm, 30 mm. Other sizes are available on request.

Corers with different diameters can be used in the peeling & cutting machines AS 2, AS 4 and AS 6 from KRONEN for coring apples
Cutting tubes for coring

Three cutters and a scraper are available for cutting out apple cores. They can also be changed quickly and are available in the following sizes: 20 mm, 23 mm and 27 mm. A cutting tube with a diameter of 20 mm (A 2 / AS 4) or 23 mm (AS 6) with a scraper comes as standard.

The wedge stars for the peeling & cutting machines AS 2, AS 4 and AS 6 from KRONEN can be used to divide applies flexibly into 2, 4, 6, 8 10, 12, 16 or 24 pieces
Wedging knives for segmenting

The wedging tool can be added to the coring tool. This means that the apple can be left whole or cut into 2, 4, 6, 8 10, 12, 16 or 24 segments using a wedging knife. With the AS 4 and AS 6, you can produce even smaller pieces in combination with the slicing knife.

The top-cut blade of the apple peeling & cutting machine AS 6 removes the residue peel from the top of the apple after whole apples have been peeled
Top-cut knife

The top-cut knife is available for the production of whole peeled apples. When an apple is peeled, a small strip of peel always remains at the top. This strip of peel can be removed cleanly with the knife.

KRONEN accessories
Knife stand for three wedging or slicing knives

A knife stand is recommended for the proper storage of cutting tools. A stand is available for three wedging knives, and another knife stand for slicing knives as an accessory for the AS 4 and AS 6.

up to 600 apples/h
Capacity
Semi automatic
Knife-peeling

The capacity depends on the product, among other things.

Electrical power Power 0.15 kW
Voltage 1~230 V N/PE
Frequency 50/60 Hz
Dimensions LxWxH 660 x 300 x 400 mm
Weight 36 kg
Miscellaneous Diameter of raw product 55–85 mm
Height of raw product max. 80 mm
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
