KUJ-V cube, strip & slice cutting machine

The high-performance machine cuts vegetables, fruit and meat into cubes, strips or slices – in a single operation and with exact and perfect quality, even with very fine cuts.

2,500 kg/h Max. capacity

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – precise cuts, even for the smallest of cubes, strips, sticks and slices, even for delicate products

PDF Preview Add to request

Your benefits

Cuts cubes, strips and slices – even very fine (e.g. ultra-fine 3 x 3 x 3 mm cubes)
High performance with precise and consistent cutting quality
Easy operation and cleaning as well as maximum safety
Extensive cutting tools for slices from 2 to 20 mm, strips from 2 x 2 to 20 x 20 mm and cubes from 3 x 3 x 3 to 20 x 20 x 20 mm
Compact design for a low space requirement – as a stand-alone machine or for integration into a processing line

Product groups

Portrait

For fine cubes, sticks, strips and slices: cut large quantities up to 2,500 kg per hour easily and precisely

The KUJ-V cuts even the finest cubes, strips, sticks and slices cleanly and precisely in large quantities for the food and catering industry. In just one operation, the machine processes vegetables (e.g. carrots, potatoes, onions and peppers), fruit (e.g. apples, kiwis and melons) or meat, ham, bacon and fish.

The standard built-in frequency converter with seven adjustable speeds also ensures gentle cutting and dicing. Fine cubes measuring 3 x 3 x 3 mm (brunoise), vegetable rice (e.g. from broccoli and cauliflower stalks) measuring 3 x 3 x 5 mm, long slices of vegetables such as eggplants/aubergines, zucchini/courgettes and cucumbers, or fine 2 x 2 mm sticks for dips, soups, sauces and salads can also be produced. In addition, even sensitive products such as strawberries, beetroot, mushrooms, tomatoes and zucchini/courgettes are processed perfectly. Meat and fish (e.g. salmon and octopus), both cooked and frozen, or hard-boiled eggs and cheese (e.g. mozzarella) can also be diced with the KUJ-V.

Product requirements:

Diameter: 85 mm
Length: 120 mm as standard, with the optional special rotor up to 200 mm

The GS 10-2 or GS 20 belt cutting machines are suitable for other products such as leaf lettuce and herbs.

Show more Show less

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – even for fine vegetable rice with cubes e.g. 3 x 3 x 5mm

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – even for potato cubes or Brunoise (tiny 3mm cubes)

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – vegetable sticks, e.g. French fries made from potatoes

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – slices, e.g. from beet

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – even for delicate products such as mushrooms (e.g. button mushrooms)

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – even for fine sticks: carrots / "Julienne" vegetables

KUJ V: cut cauliflower or broccoli rice

With KRONEN KUJ V (https://www.kronen.eu/en/maschinen/kujv) cube, strip and slice cutting machine you can cut cauliflower or broccoli stems and other vegetables into vegetable rice (e.g. pieces of 3 x 3 x 5 mm) - a real trend product!

Show more Show less

KUJ V: Bell pepper cubes, carrot strips

We show you how fast and perfect you can dice bell peppers or cut carrots into fine strips with the {Link: 624} . The KUJ V not only convinces by its perfect quality, but also by simple and fast tool changes and cleaning possibilities.

Show more Show less

KUJ V: Strip cutting of carrots (Julienne)

With KUJ V Cube, strip & slice cutting machine you can cut e.g. carrots into fine strips, 2 mm in this case. More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: Strip cutting of carrots (Julienne 2x40mm)

With KUJ V Cube, strip & slice cutting machine you can cut e.g. carrots into fine strips, 2 x 40 mm in this case. More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: Slicing Onions in rings (3 mm slices)

Cut the onions into thin rings (3 mm) by using KUJ V cube, strip & slice cutting machine. It is ideal for pizza toppings, salads and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

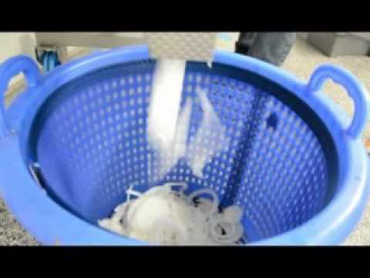

KUJ V: Slicing Onions in rings (5 mm slices)

Cut the onions into perfect rings (5 mm) by using KUJ V cube, strip & slice cutting machine. It is ideal for pizza toppings, salads and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

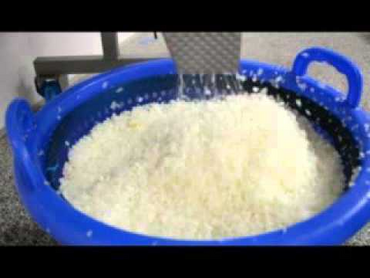

KUJ V: Dicing onions (5 x 5 mm cubes)

Cut the onions into perfect dices (5 x 5 mm) by using KUJ V cube, strip & slice cutting machine. It is ideal for pizza toppings, salads and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: Dicing bell pepper (10 x 10 mm cubes)

The KUJ V Cube, strip & slice cutting machine is perfectly suited for processing large batches of (e.g.) pepper into 10x10x10 mm dices. Perfectly suited for pizza topping, salads and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: Dicing bell pepper (5 x 5 mm cubes)

The KUJ V Cube, strip & slice cutting machine is perfectly suited for processing large batches of (e.g.) pepper into 5x5x5mm dices. Perfectly suited for pizza topping, salads and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: Sticks cutting of bell pepper (10 mm sticks)

The KUJ V Cube, strip & slice cutting machine is perfectly suited for processing large batches of (e.g.) pepper into 10 mm sticks. Perfectly suited for pizza topping, salads and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

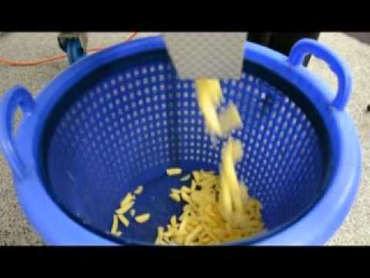

KUJ V: French fries of peeled potatoes

Stick cutting of potatoes into french fries (10 mm) - child's play with the KUJ V Cube, strip & slice cutting machine. We, herewith, show the processing of peeled potatoes. More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

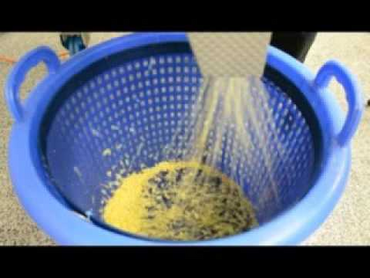

KUJ V: Cutting peeled potatoes into 5 mm dices

Dicing within seconds: Watch the KUJ V Cube, strip & slice cutting machine cutting peeled potatoes into fine dices of 5 x 5 x 5 mm. Perfectly suited for soup ingredients and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: French fries of unpeeled potatoes (10 mm sticks)

Stick cutting of potatoes into french fries (10 mm) - child's play with the KUJ V Cube, strip & slice cutting machine. We, herewith, show the processing of unpeeled potatoes. More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: Cutting unpeeled potatoes into 15 mm dices

Dicing within seconds: Watch the KUJ V Cube, strip & slice cutting machine cutting unpeeled potatoes into fine dices of 15 x 15 x 15 mm. Perfectly suited for soup ingredients and many more! More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=2

Show more Show less

KUJ V: French fries made from unpeeled potatoes

Cut potatoes into French fries – it’s 'child's play' using the KUJ V cube, stick & slice cutting machine. Here we show you how to process unpeeled potatoes into potato sticks (10 mm). More information at: More information: http://www.kronen.eu/product.php?IDProduct=13550&iIDLang=1

Show more Show less

Benefits

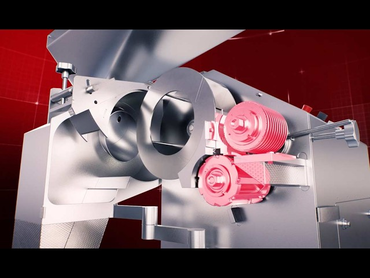

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat allows very easy knife cylinder and blade changing

Easy roller and blade replacement

The knife rollers can be removed and installed quickly and safely. This enables simple, rapid product changes and also reduces cleaning times. The rollers can be changed in a few minutes using the special tools supplied. The blades in the rollers are replaceable and can be resharpened or renewed, reducing follow-up costs.

Show more Show less

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat is very safe, simple to operate and easy to clean

Easy and safe operation, cleaning and maintenance

The products are optimally fed into the removable feeding hopper either manually or optionally via an ascending conveyor belt, cut, and discharged via a conveyor belt or ejected into a container. The ergonomic hygienic design with continuously welded edges and the knife box door with a 90-degree swivel function make cleaning quick and easy. Central lubrication and easily accessible housing facilitate servicing.

Show more Show less

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat featuresnumerous cutting inserts for flexible, versatile applications

Cutting inserts for diverse requirements

A wide range of cutting tools is available for different types of cutting: for cutting slices (cutting thickness from 2 to 20 mm) and for dicing, a grooved knife and a guide plate are required; for strip cutting, a grooved knife, a scraper and a circular knife roller (available in sizes 2, 3, 5, 6, 7.5, 9, 10, 12, 15 and 20 mm); and for cube cutting, a grooved knife, a scraper, a circular knife roller and a chopping roller (available in sizes 3, 5, 7.5, 10, 12, 15 and 20 mm). By combining the individual cutting knives, a wide variety of cutting shapes are possible, for example 6 x 10 x 15 mm, 4 x 5 x 7.5 mm, 3 x 5 x 5 mm and many more. Special cutting inserts (e.g. for wave cutting) and for special products (e.g. kiwis, avocados) are also available.

Show more Show less

The cube, strip and slice cutting machine KUJ-V from KRONEN can be supplemented by a special 3-blade rotor for extra-long products

Three-blade rotor for extra-long products

An adjustable three-blade rotor is available for the optimized infeed of long products (e.g. carrots) or the production of longer strips and sticks. Four plastic spacers reduce the maximum diameter of the product to be processed from 90 mm to either 80, 70, 60 or 50 mm and allow ideal guidance for the actual cutting process. The reduction from four to three compartments also increases the product length from 120 to 200 mm thanks to the special rotor.

Show more Show less

Guide plate for cutting long products into slices

The product guide plate is used to gently guide cut long slices (e.g. aubergines, cucumbers, zucchini/courgettes) through the machine. In addition, the use of the guide plate prevents product accumulation in the discharge.

Show more Show less

The detachable feeding hopper makes filling of the cube, stick and slice cutting machine KUJ-V from KRONEN easier

Removable feeding hopper

To make it easier to fill the machine with products from baskets or crates, an attachable top-mounted hopper is available. It also enables filling from both sides or from behind.

Show more Show less

Mobile blade rack for the cube, strip and slice cutting machine KUJ-V from KRONEN for practical, proper storage

Mobile knife stand for rollers and tools

The mobile cutting disk stand on four wheels is used for the proper storage of cutting tools and tools and ensures quick availability.

Show more Show less

200 - 2,500 kg/h

Capacity

Automatic

The capacity depends on factors such as the product.

Electrical power	Power	1.1 kW
	Voltage	230 V N/PE
	Frequency	50 Hz
Dimensions	LxWxH	1106 x 977 x 1491 mm
	Weight	204 kg
	Infeed/placement height	1491 mm
	Outfeed/delivery height	472 mm
Miscellaneous	Diameter of raw product	max. 85 mm
	Length of raw product	max. 120 mm (optionally 200 mm)
	Cutting thickness	slices: 2 to 20 mm, strips: 2 x 2 to 20 x 20 mm, cubes: 3 x 3 x 3 to 20 x 20 x 20 mm

The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
