KWT 16 weighing platform

A compact personnel platform for the ergonomic and precise weighing and filling of bags in combination with the GKS packaging machines FLEX M and FLEX L. Ideal for use for bulk products of all kinds: vegetables, lettuce and non-food items.

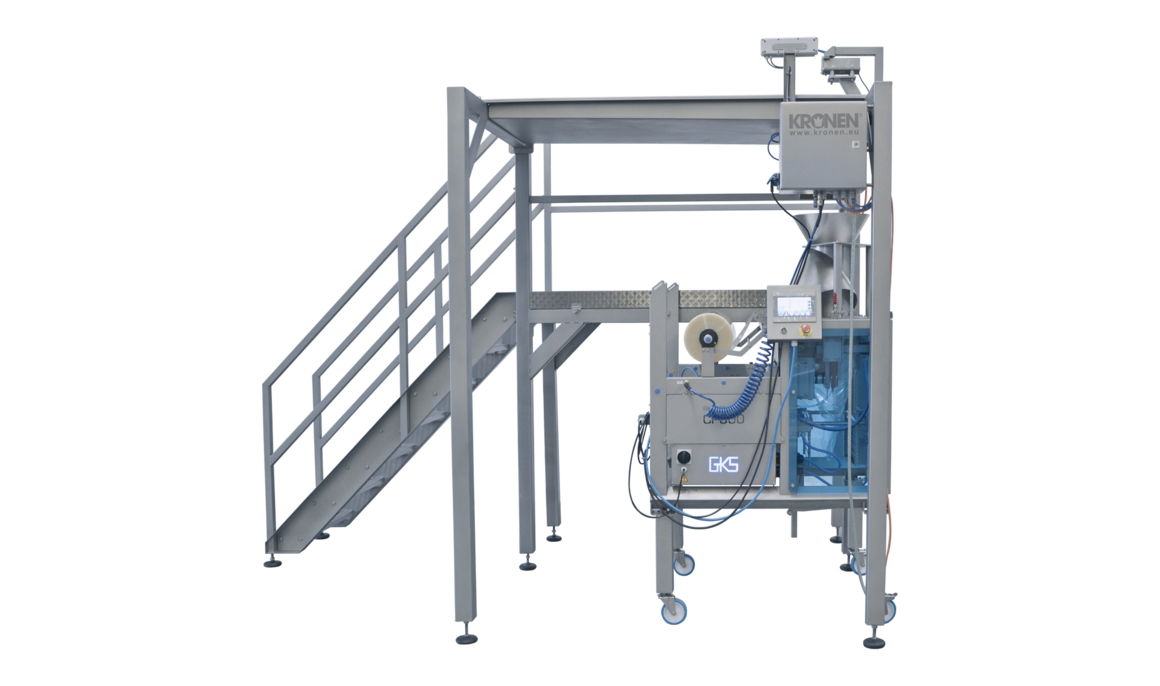

Weighing platform KWT 16 from KRONEN for the semi-automatic, ergonomic mixing, weighing and filling of pourable food and other products in representative bags

Arguments for use

  • Low space requirement due to a small base area and compact design

  • Ergonomic design enables user-friendly and productive work

  • Industrial scale with a large, easy-to-read display

  • Large weighing table with a usable volume of up to 16 liters

Product groups


Portrait

Ergonomic and space-saving weighing and filling

 The user-friendly KWT 16 weighing platform enables ergonomic weighing and filling of bulk goods of all kinds into representative bags, for example vegetables, lettuce and even non-food products.

The platform is adjusted to the height of the respective GKS packaging machine FLEX M or FLEX L, and the mixing table with the integrated single-head weigher is easily accessible by means of steps.  The large weighing container with a usable volume of 16 liters is ideal for weighing whole lettuce leaves, for example lollo bionda up to 1 kg. Up to 5 kg of product – depending on its bulk density – can be weighed and processed.

Various options show the flexible application possibilities:

  • optimized product infeed, for example with a mobile stainless steel lifting device
  • integration into a professional production processing line
  • flexible alignment of the stair access
  • different height adjustment for diverse machines and applications

The easy cleaning of the platform (made entirely of stainless steel)  with the single-head weigher is a further advantage of this system.

Show more Show less

Videos

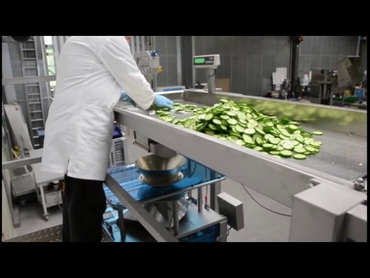

KWT 16 weighing table & platform
We supply a staff platform including single head scale for ergonomic weighing and filling. Click here for more information. (https://www.kronen.eu/de/maschinen/kwt16/maschinen-portrait)

Benefits

The weighing platform KWT 16 from KRONEN makes ergonomic work possible

Ergonomic work with a practical weighing table

The product and mixing table, which has steps for easy access, is equipped with a calibrated single-head weigher and a large, easy-to-read display.


The weighing platform KWT 16 from KRONEN is equipped with a large weighing hopper with pneumatic opening mechanism for bulk goods of all kinds

Large weighing bucket

The weighing bucket with its decoupled pneumatic opening cylinder for the outlet shutters has a usable volume of 16 liters. It is perfect for weighing up to 5 kg of product depending on the product's bulk density – up to 1 kg for whole lettuce leaves such as lollo bionda.


The weighing platform KWT 16 from KRONEN is easy to clean thanks to its great accessibility and smooth surfaces.

Optimal maintenance, cleaning and operation

The whole system is easily accessible for servicing and cleaning, thus offering optimal hygiene.


Accessories

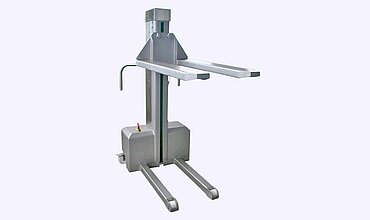

The stainless-steel mobile lift makes it easier to supply the product to be processed directly to the mixing and weighing tub of the weighing platform KWT 16 from KRONEN.
Product feed with the mobile stainless steel lifting device

This mobile stainless steel lifting device is ideal for filling the practical weighing table. The mobile stainless steel lifting device is equipped with an electronic drive unit (lifting and lowering), a battery and a charging device. A practical swivel caster with a brake provides secure standing for safe loading and unloading operations

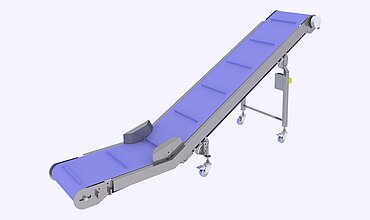

Weighing platform KWT 16 from KRONEN – the product is discharged gently and automatically via the mobile discharge belt.
360 mm-wide discharge conveyor with horizontal infeed

The practical discharge belt is equipped with mobile casters and is therefore ideal for flexible use.  The quickly released belt enables easy cleaning.
Belt width: 360 mm
Slope angle: 30 degrees – initially horizontal for 750 mm, then up to a discharge height of up to 950 mm

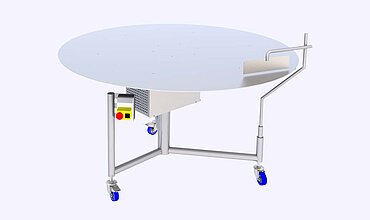

Weighing platform KWT 16 from KRONEN – products can be continually fed to further processes using the rotary table.
Robust buffer turntable, 1200 mm diameter

This turntable with a hygienic stainless steel design is perfect for maintaining a continuous material flow.

Semi automatic

The capacity depends on the product, among other things.

Electrical power Power 0.2 kW
Voltage 230 V N/PE
Frequency 50 Hz
Dimensions LxWxH 3590 x 2056 x 2814 mm
Air Working pressure 6 bar
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
