Cutting

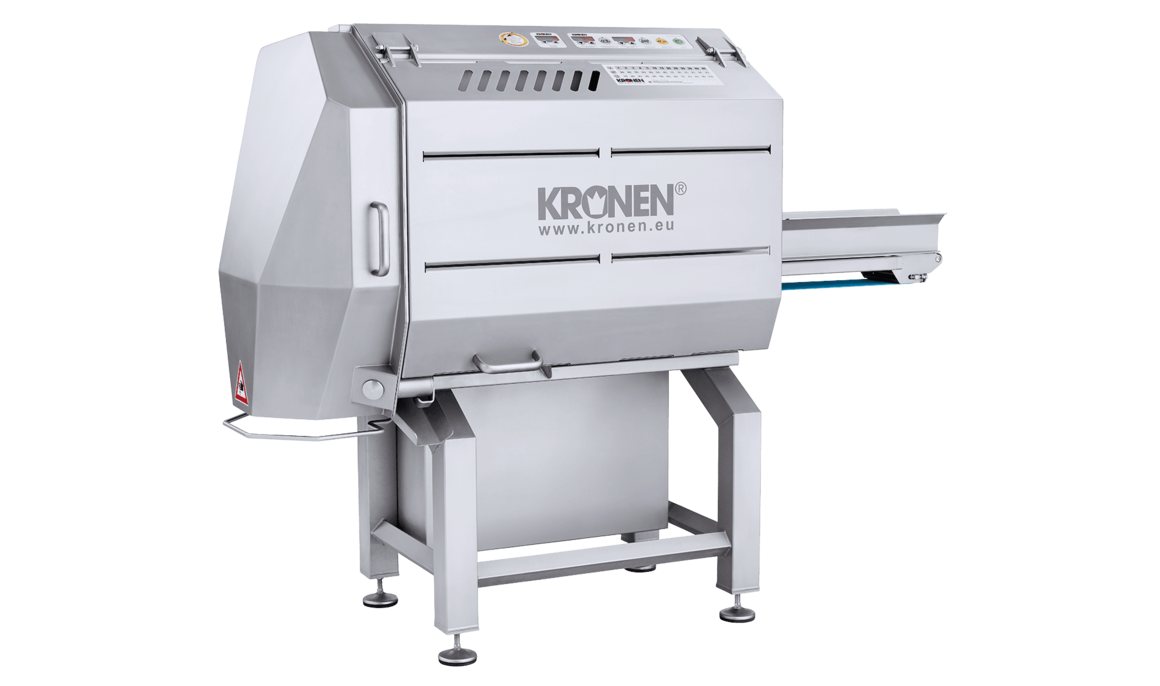

GS 10-2 belt cutting machine

Used in thousands of applications, successful worldwide: the multifunctional machine cuts almost all food products – including lettuce, vegetables and fruit, of course - effectively, precisely and gently.

up to 1,500 kg/hMax. capacity
Belt cutting machine GS 10-2 for the perfect and gentle cutting of salad, vegetables, fruit, herbs, vegan substitute products, meat, cooked meats, fish, bakery products, cheese and nuts in industrial applications.

Arguments for use

  • Cost-effective due to a reduced personnel requirement and an affordable purchase price
  • High output with precise and consistent cutting quality
  • Easy operation and cleaning – knives can be changed with no tools required
  • Highly flexible due to a large selection of cutting tools for different products and cutting types
  • Compact design for a low space requirement – for use as a stand-alone unit or for integration into a processing line
  • Optionally available as a SMART version

Product groups


Portrait

Versatile and effective food cutting: up to 1,500 kg per hour in perfect quality

The GS 10-2 is a belt cutting machine for slicing, grating, rasping and dicing and is one of KRONEN’s flagship models. Almost all types of food can be processed with the multifunctional machine: lettuce, vegetables, fruit, herbs, meat, cold meats, fish, vegan substitutes, baked goods, cheese and nuts. This makes it ideally suitable for an extremely wide range of applications and sectors. Depending on the product and cutting type, the GS 10-2 processes up to 1,500 kg of product per hour.

Prior to processing, the right knife for the product is installed; no tools are required for this purpose. The cutting thickness is infinitely adjustable from 0.5 to 50 mm. The hold-down pressure and the knife and belt speed are then set. The product is prepared for cutting, e.g. cored, peeled or segmented, before being placed on the 125 mm-wide infeed belt depending on the cut intended. Next, it is cut precisely and gently thanks to precise hold-down technology and product guidance.  As standard, the cut product can be ejected underneath the knife box, for example into a spin basket or a Euro crate. It can be optionally conveyed via a discharge belt for further processing, for example when the GS 10-2 is integrated into a processing line.

Versatile application options:

The cutting machine can be used flexibly for various applications, for example:

  • Cutting iceberg lettuce into strips or shreds
  • Cutting lollo rosso lettuce into pieces
  • Cutting cabbage into strips or shreds
  • Grating carrots or cutting them into sticks or slices
  • Dicing potatoes
  • Dicing pineapple and mango
  • Cutting cooked chicken breast into slices
  • Cutting cabanossi or bockwurst sausage into slices
  • Cutting cooked meat into strips or pulling it apart to make "pulled beef"
  • Cutting, dicing or shredding fish, for example salmon
  • Cutting or shredding vegan meat substitutes
  • Grating hard cheese
  • Cutting or dicing bread rolls or baguettes
  • Grating nuts

The GS 20 belt cutting machine is suitable for products wider than 12 cm. It has a 250 mm-wide infeed belt and processes up to 4,000 kilograms per hour.

Show more Show less

Videos

GS 10-2 - The multifunctional belt cutter for salad, vegetable, fruit and more
Watch the KRONEN GS 10-2 belt cutter with its multifunctionality in action: - Cutting lettuce and leaf salads, herbs, herbs, carrots, tomatoes, beetroots, onions, radish, cucumbers, leeks, potato dices, bell peppers, aubergine dices - Segmenting melons, pineapples or strawberries - Grating of cheese, dices of tofu, slicing of bread, mullets, meat, calamares or salami - Tearing of chicken breast etc. The KRONEN GS 10-2 Belt cutter (https://www.kronen.eu/en/maschinen/gs-10-2) impresses with perfect cutting, flexible handling, easy cleaning and hygiene!
GS10-2 Belt cutter: easy operation, knife change, cleaning
We show you how quick and easy you can operate the GS 10 belt cutter or clean it. Also, the knife change can be done within seconds. The KRONEN GS 10-2 Belt cutter (https://www.kronen.eu/en/maschinen/gs-10-2) impresses with perfect cutting, flexible handling, easy cleaning and hygiene!
Weight based filling contol for cutting vegetable, fruit and more: GS 10-2 with weighing unit
Belt-cutting machine GS 10-2 with weighing unit: By means of an input field the requested weight is defined. The weighing unit allows a weight based control of filling levels. For example, if you cut in boxes or baskets it is guaranteed that the they will not be overfilled. More: www.kronen.eu (http://www.kronen.eu)
GS10-2 belt cutter: Perfect cutting of salads and herbs
Here we show you the perfect cutting quality of lettuce, leafy salads or herbs. The KRONEN GS 10-2 Belt cutter (https://www.kronen.eu/en/maschinen/gs-10-2) impresses with perfect cutting, flexible handling, easy cleaning and hygiene!
GS10-2 Bandschneidemaschine: Vegetables variety with high cut quality
Watch the high cutting quality at the variety of vegetables. The KRONEN GS 10-2 Belt cutter (https://www.kronen.eu/en/maschinen/gs-10-2) impresses with perfect cutting, flexible handling, easy cleaning and hygiene!
GS10-2 Belt cutter: Segmenting fruit, slicing and more
With the GS 10-2 belt cutting machine you cut your fruit into bite sized pieces, slices or dices! The KRONEN GS 10-2 Belt cutter (https://www.kronen.eu/en/maschinen/gs-10-2) impresses with perfect cutting, flexible handling, easy cleaning and hygiene!
GS10-2 Belt cutter for slicing meat, tearing chicken and more
Not only vegetables, lettuce and fruit are processed by the GS 10 belt cutting machine: You can slice meat or sausage, e.g. salami, tearing chicken breast and more ... The KRONEN GS 10-2 Belt cutter (https://www.kronen.eu/en/maschinen/gs-10-2) impresses with perfect cutting, flexible handling, easy cleaning and hygiene!
GS 10-2 cutting butternut chunks
Cutting of butternut chunks with the GS 10-2 belt cutting machine.
GS10 cooked potatoe dices 20mm
Dicing cooked potatoes in 20 mm dices with the multipurpose belt cutting machine GS 10. More information: http://www.kronen.eu
Pineapple cutting
GS10 cutting prepared pineapple-strips in small slices. More information: http://www.kronen.eu
GS10 banana sliced
Banana slicing with the multipurpose belt cutting machine GS 10. More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 bread rolls sliced 3mm f. dumblings
Slicing bread rolls 3mm with the multipurpose belt cutting machine GS 10 – perfectly suited for production of dumblings. More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 cabbage dices 20x20mm
Cabbage dicing 20x20mm with the multipurpose belt cutting machine GS 10 - using a strip cutting disc. More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 cake brioche 20mm slices
Slicing cake brioche in 20mm slices with the multipurpose belt cutting machine GS 10 More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 carrot / cabbage turnip 5x5x40mm strips
Strip cutting of carrots and cabbage turnips in 5x5.40mm strips with the multipurpose belt cutting machine GS 10. More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 cheese shredded 3 + 4,2mm
Shredding cheese in 3 and 4,2 mm shreds with the multipurpose belt cutting machine GS 10 – perfectly suited pizza toppings and more! More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 cheese shredded 3mm
Shredding cheese in 3 mm shreds with the multipurpose belt cutting machine GS 10 – perfectly suited pizza toppings and more! More information: http://www.kronen.eu/product.php?IDProduct=7
Chicken breast sliced 10mm GS 10
Slicing chicken breast in 10 mm slices with the multipurpose belt cutting machine GS 10 – using an outfeed belt combined with a modified door. More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 chicken slicing
Slicing chicken in small shreds with the multipurpose belt cutting machine GS 10 – (application: chicken tearing blade). More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 curly kale rough + fine cut
Cutting curly kale with the vegetable belt cutting machine GS 10 (rough + fine cut) More informatione: http://www.kronen.eu/product.php?IDProduct=7
GS10 melons dices 20 mm
Perfect dicing of melons with the fruit belt cutting machine GS 10 – perfectly suited for production of fruit salad (by means of the grid cutting disc). More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 slicing, dicing, grating, etc.
Slicing, dicing, segmenting, grating with the all purpose vegetable and lettuce belt cutter GS 10 – various cutting accessories for a wide range of applications are available. More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 cutting herbs
Gentle and perfect cutting of herbs, such as parsley and chives, with the GS 10 vegetable belt cutting machine. More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 horseradish 2mm
Shredding horseradish with the vegetable belt cutting machine GS 10 (cutting disc 2 mm). More information: http://www.kronen.eu/product.php?IDProduct=7
GS10 Kiwi slices
Perfect slicing of kiwis with the fruit belt cutting machine GS 10 with modified cutting chamber door belt outfeed. More information: http://www.kronen.eu/product.php?IDProduct=7
Potato processing line (automatic)
The complete potato processing line (https://www.kronen.eu/en/anlagen/kl-m) for washing, peeling and cutting, also dicing of potatoes up to a capacity of 1,200 kg per hour.
GS 10-2 – The multifunction belt cutting machine for salad, vegetables, fruit and more
Watch the multifunctionality of the KRONEN belt cutting machine GS 10-2 in action: Cutting of leaf salads, cabbage, herbs, carrots, tomatoes, beetroot, onions, radish, cucumbers, leek rings, potato cubes, bell pepper strips, eggplantcubes Segmenting melons, pineapples or strawberries Shredding of cheese, dicing of tofu, slicing bread, stuffed pasta squares, meat, calamari or salami Cutting/tearing of chicken breast etc. The KRONEN belt cutting machine GS 10-2 (https://www.kronen.eu/de/maschinen/gs-10-2) convinces with perfect cutting, flexible handling, easy cleaning and hygiene!

Benefits

The down holder and product guidance of the belt cutting machine GS 10-2 from KRONEN guarantees perfect quality and gentle product outfeed.

Optimized hold-down technology and product guidance

The infeed belt with its perfectly designed hold-down technology ensures accurate yet gentle product guidance and thus allows the highest possible level of cutting quality to be achieved. The knife box with its optimized product ejection additionally ensures that the cut product remains undamaged during removal from the machine. (Fig. GS 10-2)

The belt cutting machine GS 10-2 from KRONEN is ergonomic as well as straightforward and safe to use.

Modern hygienic design

The inclined drainage slopes on all sides of the machine housing ensure that the water is ideally drained off after cleaning. The machine, including its cutting disks, is manufactured completely from AISI 304 stainless steel and is therefore particularly robust and hygienic. All components that come into contact with the product are made of food-grade (FDA-compliant) material.  (Fig. GS 10-2)

The belt cutting machine GS 10-2 from KRONEN is ergonomic as well as straightforward and safe to use.

Easy, safe operation

All blades can be quickly changed with no additional tools required. The knife and belt speed can be saved on 100 freely selectable program locations for an extremely wide variety of various products via the electronic control panel. This means that the settings for a certain product can always be retrieved quickly and easily at a later date. The safety check of the cover and knife box door stops the machine immediately if the door is opened while the machine is in operation. The safety interlock of the knife cover additionally ensures a high level of work safety.

The design of the belt cutting machine GS 10-2 from KRONEN has been optimized in terms of hygiene and food safety.

Easy cleaning and maintenance

The machine can be cleaned by means of a water jet. All machine parts such as knives, guides, belts and belt tensioners can be quickly removed for cleaning with no tools required. Furthermore, the machine has a low maintenance requirement and is designed in such a way that maintenance work can be carried out quickly and easily. For example, lubrication nipples are mounted on the outside of the machine. The blades can be partly resharpened and are therefore extremely durable.  (Fig. GS 10-2)


Accessories

Various knives can be used on the belt cutting machine GS 10-2 from KRONEN, each optimized for the different products to be processed.
Large selection of high-quality cutting disks

The range of blades comprises a wide variety of cutting tools for different applications (only a smaller selection of cutting disks is suitable for the GS 10-2 TTS), e.g. wing knives for infinitely variable cutting thickness adjustment, strip cutting disks, grating and shredding disks, an adjustable cutting disc, knives for 2D square cutting and knives for making pulled meat, chicken or vegan protein products. In addition to conventional blades, Teflon-coated and concave-ground options are also available. (Fig. GS 10-2)

The belt cutting machine GS 10-2 from KRONEN can be supplemented by a trimming station of variable length.
Preparation station

The trimming table is available in different lengths for one, four or six people. It can be connected to the infeed belt of the belt cutting machine. It is manufactured completely from AISI 304 stainless steel and/or food-grade material and includes several removable cutting boards and waste chutes. (Fig. GS 10-2)

The processing capacity of the belt cutting machine GS 10-2 from KRONEN can be increased by extending the infeed belt.
Extended infeed belt

The belt extension enables several people to charge the infeed belt at the same time. This considerably increases the capacity. The belt extension is usually combined with a trimming station. (Fig. GS 10-2)

The belt cutting machine GS 10-2 from KRONEN is also available as a mobile version on four wheels.
Mobile version

In the mobile version, the machine is delivered equipped with four casters. Due to its enhanced mobility, it can be used flexibly in various places. (Fig. GS 10-2)

Product guide plates for the belt cutting machine GS 10-2 from KRONEN for the optimum alignment of long products
Adjustable product guide plates

The product guide plate divides the infeed belt into two lanes; an optional three-lane division is also available. This enables long products such as zucchini/courgettes to be correctly aligned and guided in order to ensure ideal cutting quality. In addition, several products can be simultaneously positioned next to each other, thus increasing capacity. (Fig. GS 10-2)

The discharge belt from KRONEN enables gentle product outfeed after the food has been processed.
Discharge belt

With a modified knife box door, the GS 10-2 or GS 10-2 TTS can be combined with a horizontal discharge conveyor belt. This allows the product to be gently and automatically discharged from the belt cutting machine. It can then be directly forwarded for further processing, for example in a processing line, or removed from the belt and packaged or arranged.

Cutting disc stand for storing the cutting discs for the belt cutting machine GS 10-2 from KRONEN
Cutting disk stand

The mobile cutting disk stand on four casters is used for the proper storage of cutting disks and ensures quick availability.

KRONEN SMART Factory, SMART Machines: In future, wherever production managers, technicians or foremen might be, they can check the production status of the machine or line on a laptop or mobile end device at any time
SMART Solutions for intelligent, networked production

KRONEN uses its SMART option to provide communication-enabled machines and processing lines. Wherever production managers, technicians or foremen might be, they can use these solutions to check the production status of a machine or line on their laptop or mobile device at any time. The collected data can be used to make production processes even more transparent and efficient, for example with regard to productivity, flexibility, quality and safety. Do you have special requirements? We can develop an individual, tailor-made solution for you.

SMART Solutions

up to 1,500 kg/h
Capacity
Automatic

The capacity depends on the product, among other things.

Electrical power Power 1.8 kW
Voltage 230 V N/PE
Frequency 50 Hz
Dimensions LxWxH 1610 x 670 x 1275 mm
Weight 235 kg
Infeed/placement height 777 mm
Outfeed/delivery height 470 mm
Miscellaneous Belt width 125 mm
Cutting thickness 0.5–50 mm
Knife speed 150–680 rpm
Belt speed 2.4–15.7 m/min.
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.

This might also interest you

Machine illustrations can include special accessories.
