GEWA 3850V PLUS washing machine for peppers

Specially designed for sorting, trimming and washing uncored cut peppers and other products that can be sorted according to their flotation characteristics – with an ingenious separation process and effective fine particle separation.

1,200 kg/h Max. capacity

Washing machine GEWA 3850V PLUS from KRONEN: effective washing, cleaning and sorting of non-cored cut bell peppers and other products that can be sorted due to their floating properties

PDF Preview Add to request

Your benefits

Washing and sorting takes place in one step – personnel and space requirements are therefore reduced
Effective and gentle washing due to the HELICAL washing system
Reduced water consumption with perfect washing results due to the HELICAL washing system
Continuous washing process with automatic filling, no operating personnel required
Trimming, sorting, washing, disinfection and rinsing possible in one machine
Can be used as a universal HELICAL washing machine for versatile applications

Product groups

Portrait

Specially designed for the effective sorting and washing of up to 1,200 kg of product per hour

The GEWA 3850V PLUS is specially designed for washing and sorting diced peppers or peppers cut into strips. In this process, the complete cut pepper with stalk and seeds is processed. During the washing process and by means of a unique, ingenious system of different water flows, the good product is separated from the waste in one single step. This saves the extra steps and effort of preparing or sorting.

The cut product is brought into the wash tank either automatically via an infeed belt or manually. The specially adjusted flow behavior in the wash tank ensures that the good product is separated from the waste and efficiently washed and discharged at the same time. With the lateral fine particle removal drum and two sand trap funnels, which are included as standard on the GEWA 3850T PLUS, dirt and fine particles can be perfectly separated out. In addition, the fresh water supply and emptying of the washing machine are also controlled centrally.

At the end of the wash tank, the good product and the water are transported to a vibration outfeed by means of an overflow and sprayed with a fresh water shower. The water flows through a strainer into the pump tank, from which it is pumped back into the wash tank and used again. The flow rate and movement of the water in the wash tank can be adjusted to suit different products.

Show more Show less

Non-cored cut bell peppers, broccoli and other products that can be sorted due to their floating properties are suitable for processing in the GEWA 3850V PLUS from KRONEN — Cut bell peppers as well as broccoli and other products with similar floating properties can be washed and sorted in one step.

GEWA 3850V PLUS from KRONEN: sand trap and additional nozzles in the washing tank of the GEWA washing machine from KRONEN – for high efficiency during washing and product outfeed — The nozzles can be controlled separately: in the first section of the machine the product is swirled strongly, whereas in the second sectionit is swirled only a little, so that it is divided into different layers and can then be discharged sorted.

Washing & sorting: PEPPER

More Information: GEWA3800V PLUS

Show more Show less

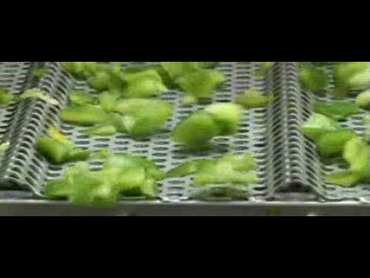

Bell pepper washing & separating process with GEWA 3800 V PLUS

The bell pepper washing machine GEWA 3800 V PLUS has been designed especially for the washing and sorting of cut bell peppers (cut complete with stem and seeds). The automatic special separating process allows the processing of different types of bell peppers, diced or cut into strips. A cleverly devised system of different water flows separates waste and good product, thus saving the user expensive sorting costs. The machine is easy to adjust, e.g. to different types of bell pepper. It can also be used as a standard washing machine by simply swinging the link belt up. A capacity of 800 kg (good product) can be achieved with the machine. Production quantities of approx. 1000 - 1200 kg per hour can be processed. WMS and sand trap funnel are integrated in the bell pepper washing machine as standard.

Show more Show less

Benefits

Automatic floating separating process during washing with the GEWA 3850V PLUS for bell peppers: the process makes sorting possible during the washing process. It can be used, for example, for diced bell peppers or bell peppers cut into strips

Flotation separation process

This process enables sorting during the washing process. It can be used for peppers that are diced or cut into strips and for other products that can be sorted according to their flotation characteristics. The stem and immature white parts float on the surface of the water and are discharged via a special conveyor belt with a stainless steel link belt. Heavy parts (cores) sink to the bottom of the tank and are channeled out via the sand trap. The good product is distributed in the remaining water volume of the washing machine and is discharged via the vibration outfeed for further processing.

Show more Show less

The GEWA HELICAL washing system from KRONEN guarantees effective, gentle washing and reduces water consumption and space requirement

Highly effective, gentle HELICAL washing system

KRONEN’s HELICAL washing system ensures that the product travels along a spiral-shaped route in the wash tank that is up to ten times longer than the wash tank. Due to the ideal distribution, the product is loosened up and constantly rinsed completely during the cleaning process. Products are therefore washed thoroughly and gently, water consumption is considerably reduced, and the machine is ideal for a wide range of applications.

Show more Show less

Sand trap in the GEWA washing machines from KRONEN for loosened dirt and sand supports the perfect washing result

Sand trap sedimentation unit

The sand trap integrated into the wash tank separates the loosened heavy dirt (e.g. small stones) and sand from the product flow. Dirt and sand settle in the sand trap at the bottom of the wash tank and are not discharged from the wash tank with the product. (Fig. GEWA 3800 PLUS)

Show more Show less

Sand trap funnel for GEWA PLUS washing machines from KRONEN especially designed for washing very sandy products such as lamb’s lettuce or shoots

Sand trap funnel for increased volume

A sand trap funnel is necessary for washing heavily soiled products or for separating pepper seeds in the case of cut peppers or non-germinated seeds in the case of sprouts. It can accommodate a volume of 49 l, or 98 l in the case of the GEWA 3850T PLUS. (Fig. GEWA 4000)

Show more Show less

Lateral fine particle discharge on the GEWA KRONEN machine protects the pumps and makes continual work possible, even with products that foam and contain many small parts

Lateral fine particle removal drum

The lateral fine particle removal drum with a slotted strainer opening of 0.5 mm filters particles out of the circulating wash water. It enables continuous operation without blocking the filter above the pump tank and protects the pumps. This is particularly important for products that foam and contain many small particles. (Fig. GEWA AF)

Show more Show less

The Water Management System of the GEWA PLUS washing machines from KRONEN makes the central filling and draining of the washing tank possible

Water management system (WMS)

The WMS enables centrally controlled filling and emptying of the washing machine. During operation, an additional level sensor automatically regulates the water level in the washing machine. If the water level drops too low, the pneumatic infeed valves are automatically opened and fresh water is provided. (Fig. GEWA 4000)

Show more Show less

GEWA XL washing machine from KRONEN with optimum design for high standards of hygiene as well as simple and fast cleaning and maintenance – e.g. through an optional clean-in-place system (CIP)

Ideal accessibility for cleaning and maintenance

All areas are easily accessible for easy cleaning and maintenance. All pipes, the pump casing, the wash and pump tanks and the covers and switch cabinet are made from AISI 304 stainless steel. All in all, the GEWA washing machines impress users with their optimal hygienic design. In the GEWA PLUS models with vibration outfeed, there are no screws whatsoever in the product area. (Fig. GEWA XL)

Show more Show less

KRONEN SMART Factory, SMART Machines: In future, wherever production managers, technicians or foremen might be, they can check the production status of the machine or line on a laptop or mobile end device at any time

SMART Solutions for intelligent, networked production

KRONEN uses its SMART option to provide communication-enabled machines and processing lines. Wherever production managers, technicians or foremen might be, they can use these solutions to check the production status of a machine or line on their laptop or mobile device at any time. The collected data can be used to make production processes even more transparent and efficient, for example with regard to productivity, flexibility, quality and safety. Do you have special requirements? We can develop an individual, tailor-made solution for you.

SMART Solutions

Show more Show less

Cleaning trolley for the lateral fine particle removal drum

The trolley makes it easier to clean GEWA and HEWA washing machines. The lateral fine particle removal drum can be taken out of the machine and placed on the mobile trolley, on which it is easy to transport and clean.

Show more Show less

200 - 1,200 kg/h

Capacity

Wet disinfection

The capacity depends on factors such as the product.

Electrical power	Power	7.9 kW
	Voltage	3~400 V N/PE
	Frequency	50 Hz
Water	Fresh water connection	3/4 inch (GEKA coupling)
	Water drainage	2 x 2"
	Total volumes	814
Dimensions	LxWxH	4452 x 1640 x 1829 mm
	Weight	560 kg
	Infeed/placement height	1232 mm
	Outfeed/delivery height	925 mm

The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
