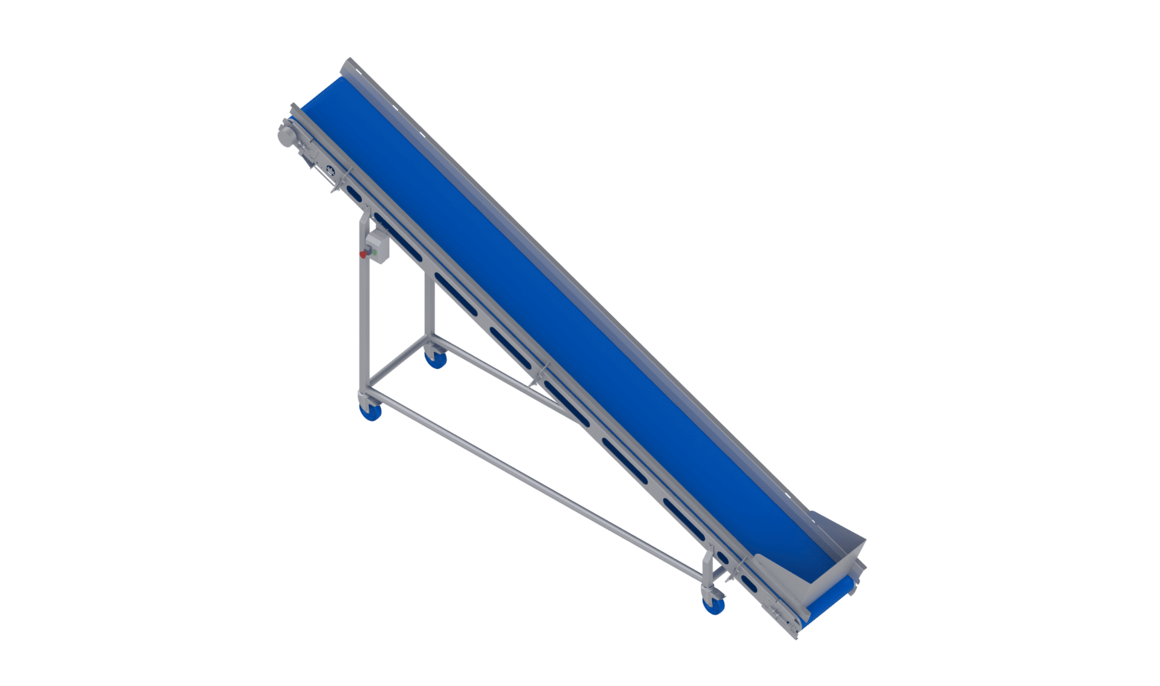

ECO inclined conveyor belt

Cost-reduced ECO model: The inclined conveyor belt is available with a flexible design, for example with and without cleats and with different lengths, widths, heights and inclination angles. It ensures a continuous process and a higher level of automation in production.

The ECO conveyor belt from KRONEN can be adapted individually or ordered as a customer-specific version
PDF Preview Add to request

Your benefits

  • Cost-reduced ECO model
  • A wide variety of versions are available and can be customized
  • The more continuous filling enables a higher level of automation and improved hygiene

Product groups

Portrait

Cost-reduced conveyor belt: flexibly adaptable to different food products and requirements

The ECO conveyor belt enables the continuous transport of food products (cut and whole) to the next processing step, for example to the peeling or cutting machine, and from here to the washing machine. Among other things, it is also suitable for the discharge of waste products.

The ascending conveyor belt is available in a wide variety of designs and can be individually customized to meet specific requirements in the food industry. A hopper for product infeed is included and can be adapted to the machine or product used in each case. The belt also comes with a mobile base frame and, in the case of smooth belts, a scraper.

Compared to theConveyor PLUS, the ECO version is always suitable when the conveyor belt does not need to be removed, for example in order to be submerged in a cleaning solution. Due to the quick tension relief function, the ECO conveyor belt can be manually cleaned very well from all sides. The side guides can be folded down and the hopper is removable.

Show more Show less

Benefits

The PLUS conveyor belt from KRONEN is optimized in terms of cleaning and hygiene – the belt itself can be removed at the side without tools being necessary, and the drum motor can be swung upwards.

Optimal maintenance and easy cleaning

The open stainless steel design enables fast cleaning. The belt tension can be released easily. The deflection roller can be folded up. With regard to hygienic design, the belt body is manufactured in such a way that horizontal surfaces are avoided.


Show more Show less
The PLUS and ECO conveyor belts from KRONEN are available in a wide range of different versions – e.g. with and without cleats as well as in different lengths, widths, heights and inclination angles etc.

Flexible designs can be ordered individually

The belts can be ordered in various lengths, widths, heights and inclination angles and are therefore ideal for use in the food industry. They are available with and without cleats: a belt with cleats is recommended for steep belts or products that could easily roll away. In addition, various conveyor belts and materials are available. The fold-down side guide plates are available in various heights. The removable hopper is manufactured specifically for application with the respective machine or product. The PLUS version is also available as an adjustable incline conveyor belt (flat-to-inclined, inclined-flat or gooseneck). (Fig. PLUS)

Show more Show less

Accessories

There are standard and optional drip trays available for the K650 drying system from KRONEN
Drip plates for water drainage

The drip plates prevent water and product from the conveyor from contaminating the floor, thus improving hygiene and cleanliness.


Show more Show less
KRONEN accessories
Variable speeds

The conveyors are optionally available with a frequency converter. The speed can be regulated in seven steps by means of a selector switch.


Show more Show less
Transportbänder von KRONEN: Für den Transport von nassem Produkt mit Netzgittergurten können Gebläse und Sauggebläse installiert werden, um das Produkt zu entwässern und vom Gurt zu entfernen.
Blowing and suction

For transporting wet products on mesh grid belts, blowers and suction blowers can be installed to dewater the products and remove them from the belt.


Show more Show less
ECO
Inclined conveyor belt

The capacity depends on factors such as the product.

Electrical power Power depending on the design
Voltage 400 V N/PE (without frequency converter) / 230 V N/PE (with frequency converter)
Frequency 50 Hz
Dimensions LxWxH depending on the design
Weight depending on the design
Infeed/placement height depending on the design
Outfeed/delivery height depending on the design
Belt width depending on the design
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
