Request
Preparing, Conveying

Inspection table with belt

The inspection table has two to four workstations at the conveyor belt for the visual inspection of the quality of raw or peeled or cut products.

The inspection table makes visual checks on raw goods or on the peeling and cutting quality of processed goods possible
PDF Preview Add to request

Your benefits

  • Robust construction
  • Easy to clean

Product groups

Portrait

Efficiently sorting raw material and checking peeling and cutting quality

The inspection table with belt enables the smooth transport of raw products or peeled and cut fruit and vegetables between different processing machines or acts as a conveyor belt to forward the products, for example into a washing machine. A visual inspection of the quality of the products is performed by the operators. The two laterally mounted waste chutes enable the targeted removal of sorted-out products and waste at two to four workstations.
The transport speed is 0.25 meters per second; the belt is also optionally available with adjustable speed.
The inspection table is available in different versions, depending on the various production requirements.

Show more Show less

Accessories

KRONEN accessories
Adjustable speed for an adaptable product flow

Thanks to the adjustable speed at which the products are transported, the product flow can be adapted to meet different production requirements. The power output of this version is 0.55 kW and 230 V.

Show more Show less
KRONEN accessories
Fresh water shower for spraying the products

The fresh water shower, which can be flexibly positioned above the sorting belt, is used to spray the products.

Show more Show less
KRONEN accessories
Tray for collecting water

If a spray shower is installed, a tray can be additionally attached to the inspection table to collect the water.

Show more Show less
Continuous
Loading type

The capacity depends on factors such as the product.

Electrical power Power 0.55 kW
Voltage 380 V
Dimensions LxWxH depending on the configuration
Weight depending on the configuration
Belt width 700 mm
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
PDF Preview
pdf
Download

This might also interest you

Belt cutting machine GS 10-2 for the perfect and gentle cutting of salad, vegetables, fruit, herbs, vegan substitute products, meat, cooked meats, fish, bakery products, cheese and nuts in industrial applications.
Cutting
GS 10-2 belt cutting machine
Used in thousands of applications, successful worldwide: the multifunctional machine cuts almost all food products – including lettuce, vegetables and fruit, of course - effectively, precisely and gently.
  • Capacity up to 1,500 kg/h
  • Loading: Automatic
Details

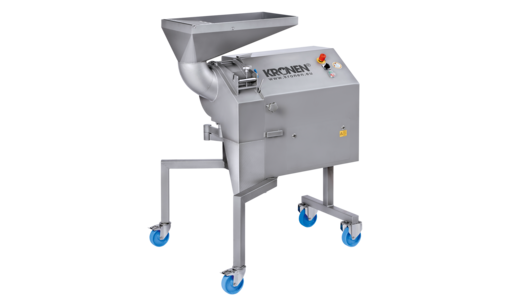

The cube, strip and slice cutting machine KUJ-V from KRONEN for vegetables, fruit and meat – precise cuts, even for the smallest of cubes, strips, sticks and slices, even for delicate products
