Disinfection, Cutting, Drying, Facilitate, Weighing, Packaging

Processing and packaging line for fruit and vegetables

A semi-automatic complete system for cutting, disinfecting, treating, dewatering, weighing and packaging fruit and vegetables: for more efficiency, gentle processing and high product quality

up to 750 kg/hMax. capacity

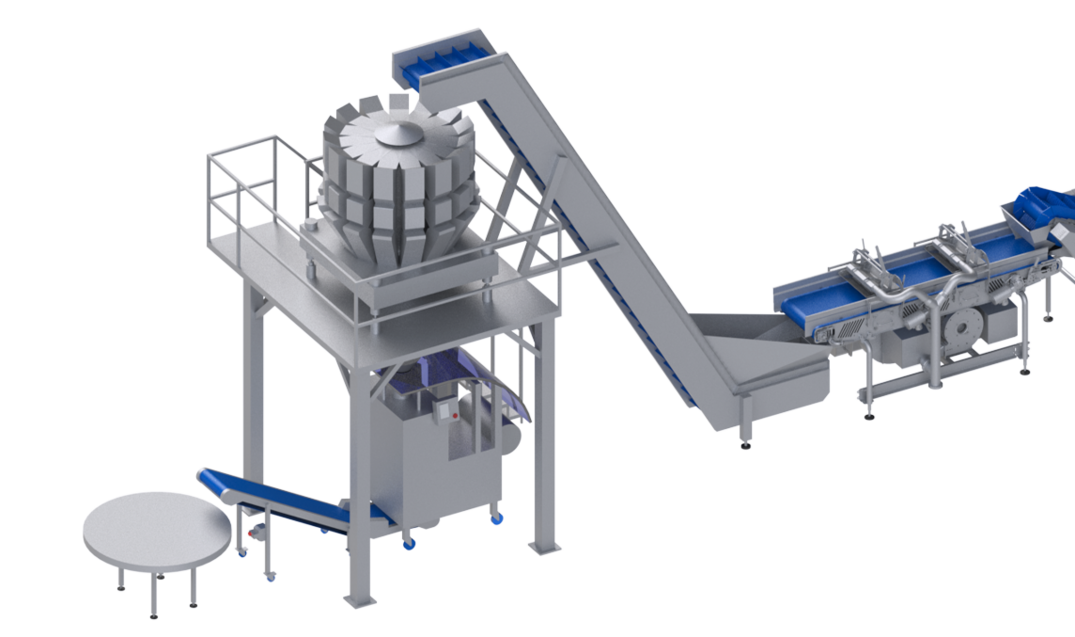

KRONEN processing and packaging line for fruit and vegetables (apples, pears and quince as well aseggplant , potatoes, and onions) up to 750 kg/h

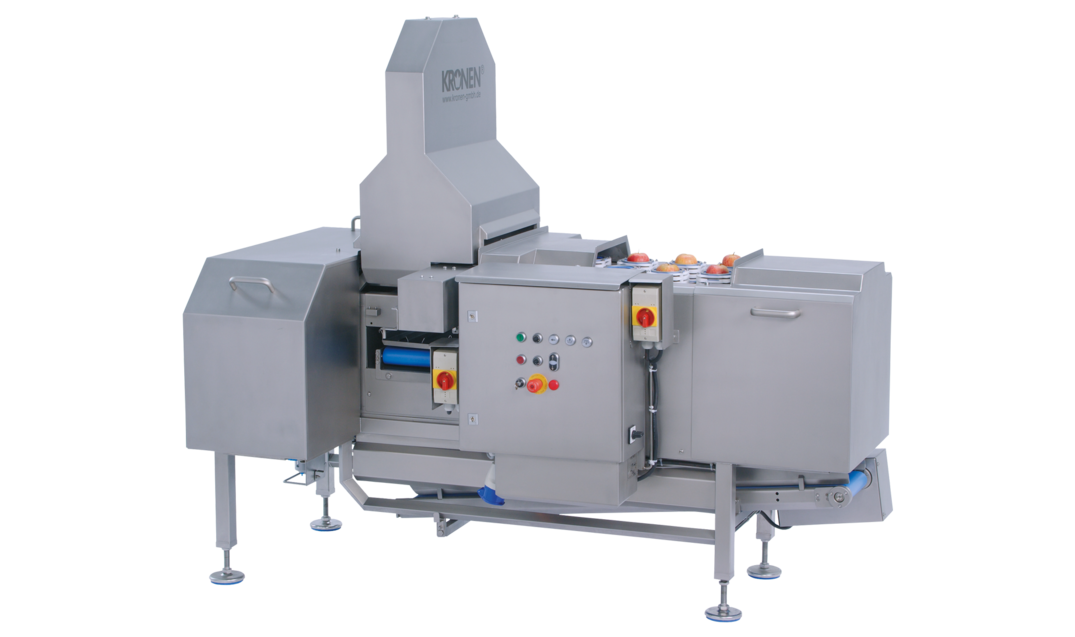

Tona Rapid cutting machine
With the TONA Rapid S145, vegetables and fruit are cored, divided or cut into slices, segments or sticks.

The Tona Rapid is used to produce slices, segments or sticks from vegetables and fruits or to core products. The product holders ensure optimum alignment of the products and therefore excellent cutting quality.

More...

PLUS inclined conveyor belt
The PLUS conveyor belt from KRONEN is optimized with regard to cleaning and hygiene and can be individually adapted

Please note: The photo shows the standard version of the PLUS inclined conveyor belt.

The PLUS conveyor belt is optimized in terms of cleaning and hygiene. It is available with a flexible design, for example with and without cleats and in different lengths, widths, heights and inclination angles. It ensures a continuous process and a higher level of automation in production.

More...

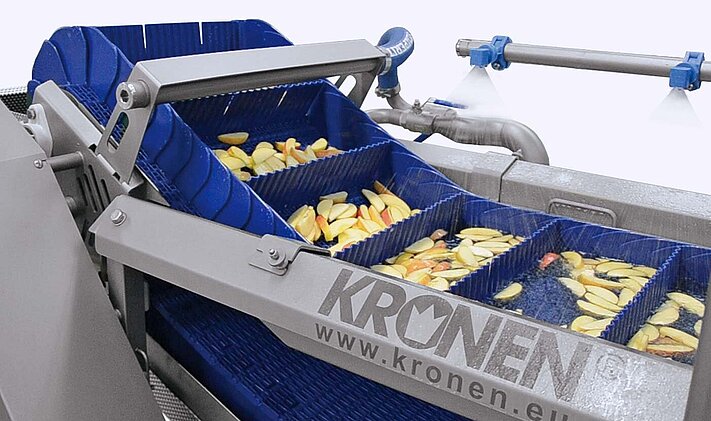

KDB 120 dipping bath

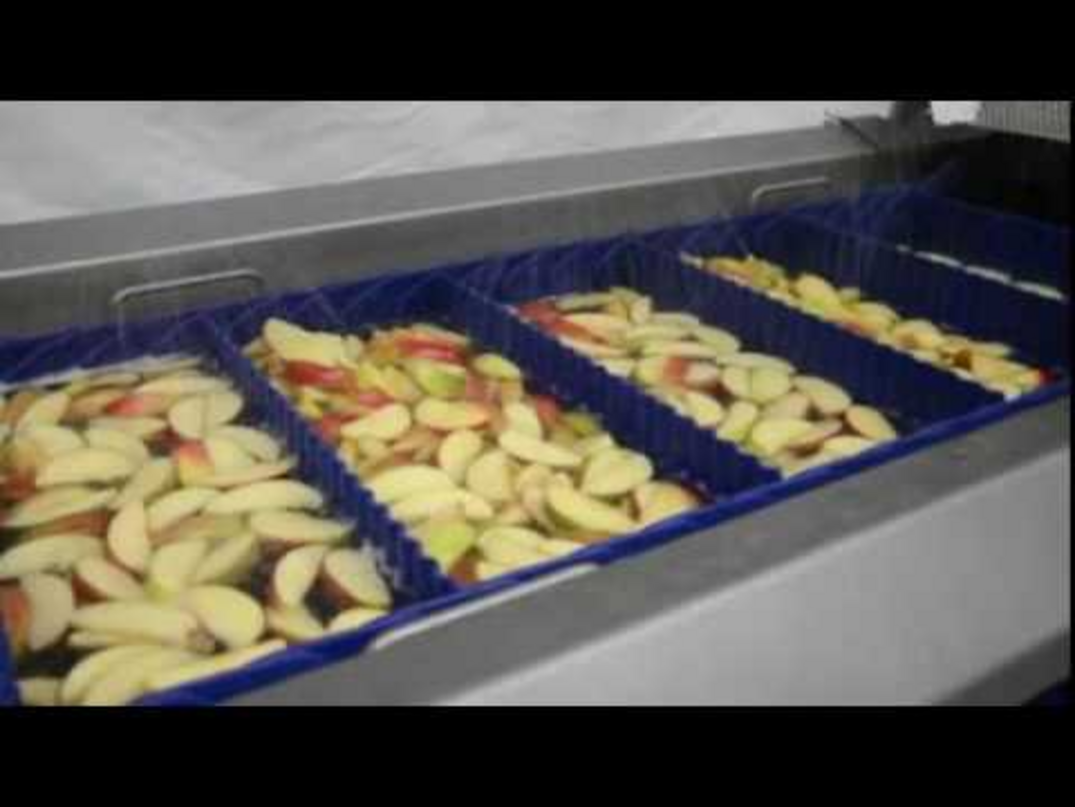

In the KDB 120 dipping bath, cut fruit and vegetables are treated with a minimum amount of water and therefore also a reduced amount of additives in order to increase shelf life and reduce the germ load on product surfaces.

More...

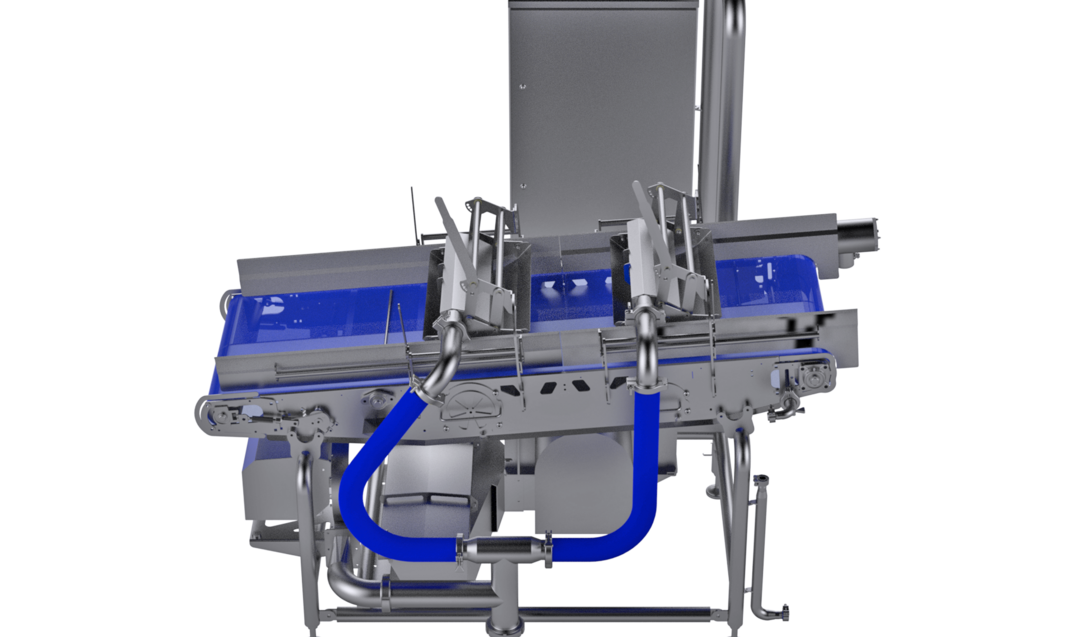

HFDS 2500/600 belt dewatering system
The belt dewatering system HFDS 2500/600 from KRONEN dewaters fruit and vegetables (whole and cut)

Optimized for dewatering whole and cut fruit and vegetables: The system is integrated into a processing line after the washing process and combined with another belt dewatering system or a continuous centrifuge.

More...

Packaging solution from GKS Packaging

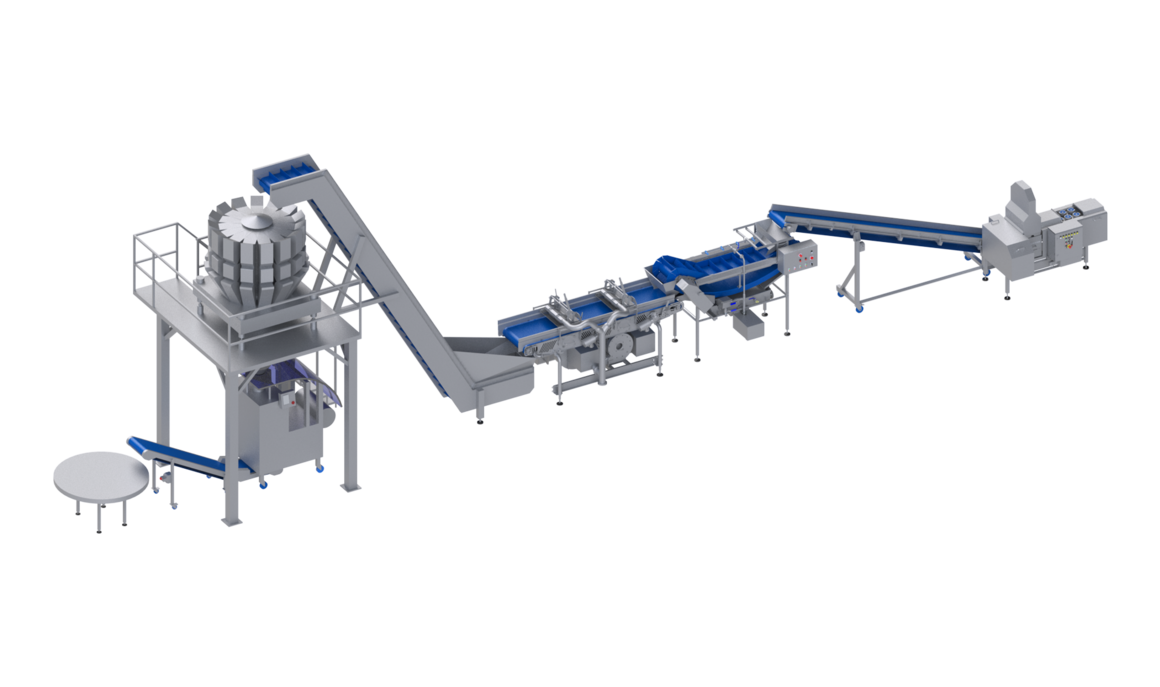

KRONEN processing and packaging line for fruit and vegetables (apples, pears and quince as well aseggplant , potatoes, and onions) up to 750 kg/h

GKS packaging solution with

  • Slope conveyor
  • 14-head scales

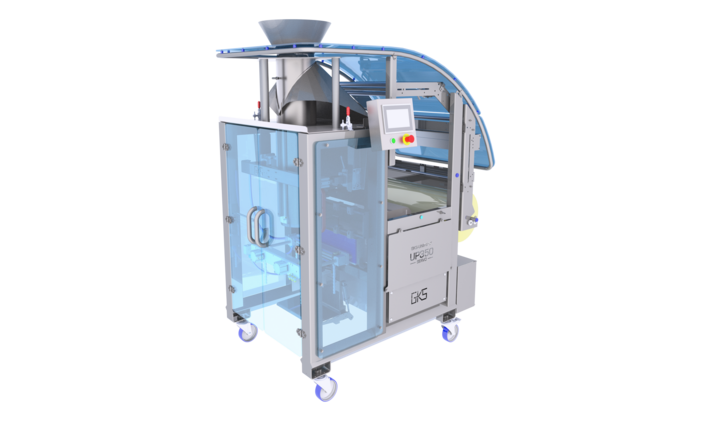

  • FLEX L packaging machine; the bags can be optionally treated and also printed via a connection for gas flushing (MAP)
  • Outfeed belt, optionally with a metal detector
  • Rotary table for buffering

Arguments for use

  • Semi-automatic processing for more efficiency in production and high capacities
  • Gentle processing and high product quality – flexible use for various products
  • Simple operation and a low personnel requirement
  • Efficient weighing and packaging with the integrated packaging solution by GKS Packaging

Product groups


Portrait

For cutting, disinfecting, treating, weighing and packaging products – up to 750 kg/hour

The semi-automatic processing and packaging line integrates a range of KRONEN machines with a dewatering solution from HiTec Food Systems and a packaging solution by GKS Packaging. The line is used for complete processing from the raw material to the bagged end product.

The system can be used primarily for processing apples, pears and quinces as well as eggplant/aubergines, potatoes and onions. The respective capacity depends on the product and the packaging size.

The following machines or solutions are integrated into the line:

  1. Cutting: Tona Rapid cutting machine , optionally with different cutting inserts, for example for
    • Segments: 2, 4, 8, 12 or 16
    • Slices: 6 mm, 8 mm or 10 mm
    • Cubes: 15–20 mm (with the Tona Rapid 3D)
  2. Conveying: PLUS inclined conveyor belt
  3. Disinfection and treatment: KDB 120 dipping bath
  4. Drying: HFDS 2500/600 belt dewatering system
  5. Weighing and packaging: GKS packaging solution with
    • Slope conveyor
    • 14-head scales
    • FLEX L packaging machine; the bags can be optionally treated and also printed via a connection for gas flushing (MAP)
    • Outfeed belt, optionally with a metal detector
    • Rotary table for buffering

The line is ideal for packaging bags up to 350 mm wide.

Show more Show less

Benefits

KRONEN offers a high degree of consultation and planning expertise and develops customized solutions for a wide range of different applications – complete processing lines from a single source

Complete solutions from a single source

KRONEN is a reliable partner, even when it comes to implementing automated processing lines. With a high level of planning and consulting expertise, the company implements the right solution for every customer requirement. KRONEN offers complete lines from a single source and integrates suitable machines from partners as required.

Made-to-measure solutions

up to 750 kg/h
Capacity
Semi automatic
Wet disinfection

The capacity depends on the product, among other things.
